Head Size | Ordering Number |

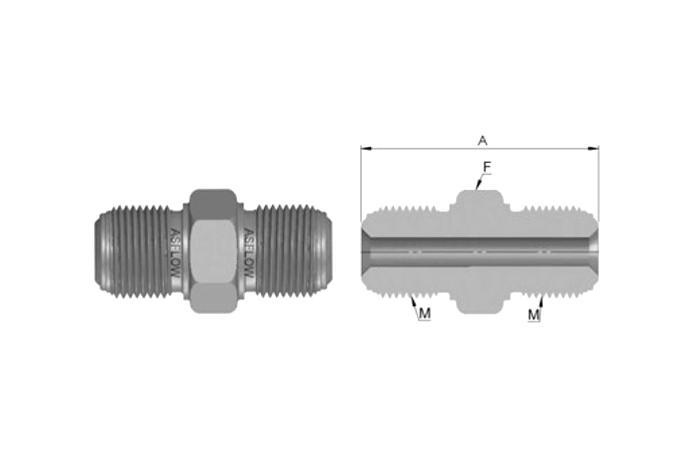

ID | A | F | M | Working Pressure bar(psig) |
|
---|---|---|---|---|---|---|---|
NI | 316L | ||||||
1/4″ | AC-DMU04 | 4.35 | 39.40 | 15.90 | 9/16-18UNF | 551(8000) | 689(10000) |
1/2″ | AC-DMU08 | 10.22 | 47.30 | 23.80 | 7/8-14UNF | 241(3500) | 296(4300) |
3/4″ | AC-DMU12 | 15.75 | 62.00 | 33.30 | 1 1/4-18UNEF | 206(3000) | 254(3700) |
1″ | AC-DMU16 | 22.10 | 65.80 | 41.30 | 1 1/2-20UN | 165(2400) | 206(3000) |
