Head Size | Tube Size(OD) |
Ordering Number |

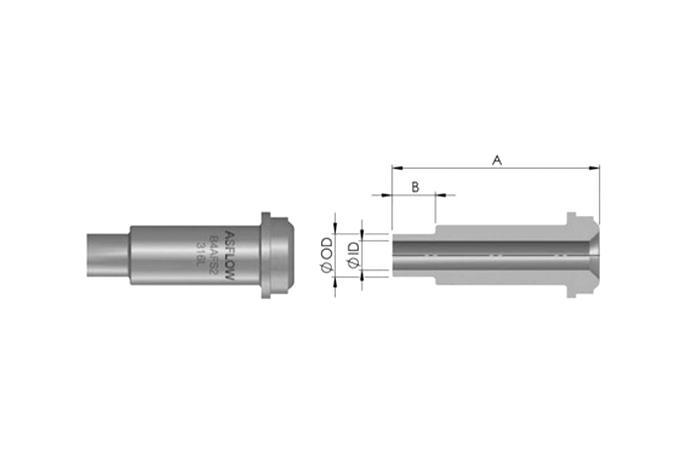

OD | ID | A | B | Working Pressure bar(psig) |
|
---|---|---|---|---|---|---|---|---|
NI | 316L | |||||||
1/4″ | 1/4″ | AC-MGM04 | 6.35 | 4.35 | 30.50 | 6.35 | 351(5100) | |
3/8″ | 3/8″ | AC-MGM06 | 9.53 | 7.53 | 32.80 | 6.35 | 227(3300) | |
1/2″ | 1/2″ | AC-MGM08 | 12.70 | 10.22 | 32.80 | 6.35 | 241(3500) | |
1/2″ | 1/4″ | AC-MGM08-04 | 6.35 | 4.35 | 32.80 | 6.35 | 241(3500) | 296(4300) |
1/4″ | 6M | AC-MGM04-6M | 6.00 | 4.00 | 30.50 | 6.35 | 468(6800) | |
1/4″ | 8M | AC-MGM04-8M | 8.00 | 6.00 | 30.50 | 6.35 | 337(4900) | |
1/2″ | 10M | AC-MGM08-10M | 10.00 | 8.00 | 32.80 | 6.35 | 241(3500) | |
1/2″ | 12M | AC-MGM08-12M | 12.00 | 10.00 | 32.80 | 6.35 | 213(3100) |
