Head Size | Tube Size(OD) |
Ordering Number |

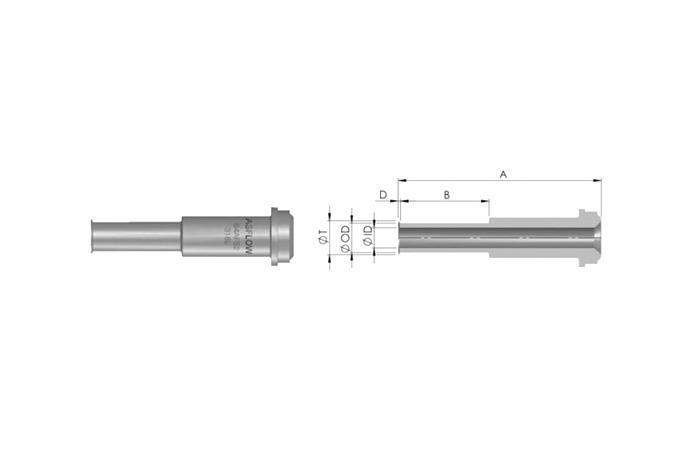

OD | ID | A | B | D | T | Working Pressure bar(psig) |
|
---|---|---|---|---|---|---|---|---|---|---|
NI | 316L | |||||||||
1/4″ | 1/4″ | AC-ALGM04 | 6.35 | 4.35 | 43.70 | 19.05 | 0.50 | 7.37 | 351(5100) | |
3/8″ | 3/8″ | AC-ALGM06 | 9.53 | 7.53 | 46.26 | 19.05 | 0.75 | 10.41 | 227(3300) | |
1/2″ | 1/2″ | AC-ALGM08 | 12.70 | 10.22 | 46.52 | 19.05 | 1.02 | 13.97 | 241(3500) | |
1/2″ | 1/4″ | AC-ALGM08-04 | 6.35 | 4.35 | 46.00 | 19.05 | 0.50 | 7.37 | 241(3500) | |
3/4″ | 3/4″ | AC-ALGM12 | 19.05 | 15.75 | 52.62 | 19.05 | 1.02 | 20.32 | 165(2400) | |
1″ | 1″ | AC-ALGM16 | 25.40 | 22.10 | 59.92 | 20.00 | 1.02 | 26.92 | 165(2400) |
