Head Size | Tube Size(OD) |
Ordering Number |

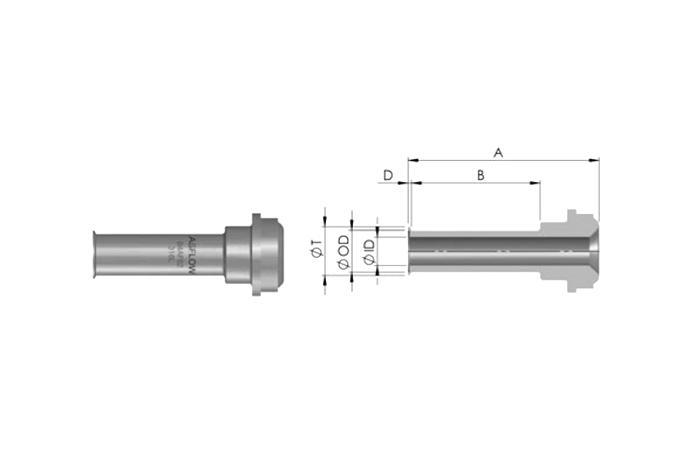

OD | ID | A | B | D | T | Working Pressure bar(psig) |
|
---|---|---|---|---|---|---|---|---|---|---|
NI | 316L | |||||||||
1/4″ | 1/4″ | AC-ALGF04 | 6.35 | 4.35 | 28.50 | 19.05 | 0.50 | 7.37 | 351(5100) | |
3/8″ | 3/8″ | AC-ALGF06 | 9.53 | 7.53 | 29.26 | 19.05 | 0.75 | 10.41 | 227(3300) | |
1/2″ | 1/2″ | AC-ALGF08 | 12.70 | 10.22 | 29.52 | 19.05 | 1.02 | 13.97 | 241(3500) | |
1/2″ | 1/4″ | AC-ALGF08-04 | 6.35 | 4.35 | 29.00 | 19.05 | 0.50 | 7.37 | 241(3500) |
