Head Size | Tube Size(OD) |
Ordering Number |

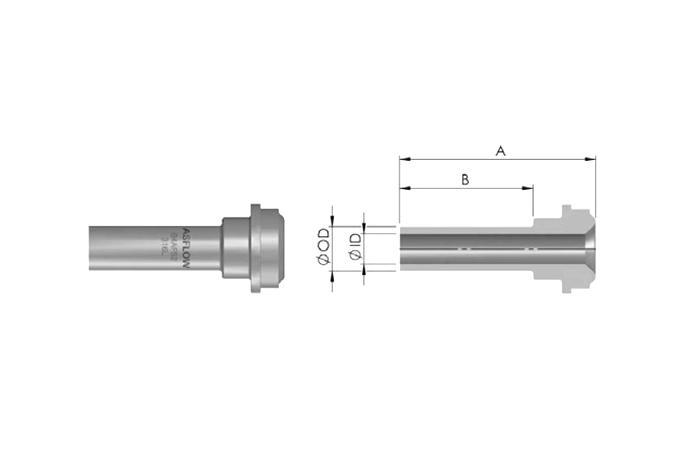

OD | ID | A | B | Working Pressure bar(psig) |
|
---|---|---|---|---|---|---|---|---|
NI | 316L | |||||||
1/4″ | 1/4″ | AC-LGF04 | 6.35 | 4.35 | 28.00 | 19.05 | 351(5100) | |
3/8″ | 3/8″ | AC-LGF06 | 9.53 | 7.53 | 28.50 | 19.05 | 227(3300) | |
1/2″ | 1/2″ | AC-LGF08 | 12.70 | 10.22 | 28.50 | 19.05 | 241(3500) | |
1/2″ | 1/4″ | AC-LGF08-04 | 6.35 | 4.35 | 28.50 | 19.05 | 241(3500) | 296(4300) |
3/4″ | 3/4″ | AC-LGF12 | 19.05 | 15.75 | 34.50 | 19.05 | 165(2400) | |
3/4″ | 1/4″ | AC-LGF12-04 | 6.35 | 4.35 | 30.55 | 19.05 | 165(2400) | |
3/4″ | 3/8″ | AC-LGF12-06 | 9.53 | 7.53 | 30.55 | 19.05 | 165(2400) | |
3/4″ | 1/2″ | AC-LGF12-08 | 12.70 | 10.22 | 30.55 | 19.05 | 165(2400) | |
1″ | 1″ | AC-LGF16 | 25.40 | 22.10 | 38.60 | 20.00 | 165(2400) | |
1″ | 1/4″ | AC-LGF16-04 | 6.35 | 4.35 | 34.15 | 20.00 | 165(2400) | |
1″ | 3/8″ | AC-LGF16-06 | 9.53 | 7.53 | 34.15 | 20.00 | 165(2400) | |
1″ | 1/2″ | AC-LGF16-08 | 12.70 | 10.22 | 34.15 | 20.00 | 165(2400) | |
1″ | 3/4″ | AC-LGF16-12 | 19.05 | 15.75 | 38.10 | 20.00 | 165(2400) | |
1/4″ | 6M | AC-LGF04-6M | 6.00 | 4.00 | 28.00 | 19.05 | 468(6800) | |
1/4″ | 8M | AC-LGF04-8M | 8.00 | 6.00 | 28.00 | 19.05 | 337(4900) | |
1/2″ | 10M | AC-LGF08-10M | 10.00 | 8.00 | 28.50 | 19.05 | 241(3500) | |
1/2″ | 12M | AC-LGF08-12M | 12.00 | 10.00 | 28.50 | 19.05 | 213(3100) | |
3/4″ | 18M | AC-LGF12-18M | 18.00 | 15.00 | 34.50 | 19.05 | 206(3000) |
