Flange / Blind
Model Name
-
Series
Bend Fitting
Data
-
Manufacturer information
provider logo
ASFLOW

Semi conductor equipment and High purity valve for high purity gas line manufacturer, Fitting, Pipe, Tube, Valve, Regulator and more

Problem with product info?
Update request
Manufacturer
ASFLOW
Brand
-
SKU
53488
Product Name
Flange / Blind
Model Name
-
Size
-
Weight
-
Product Details

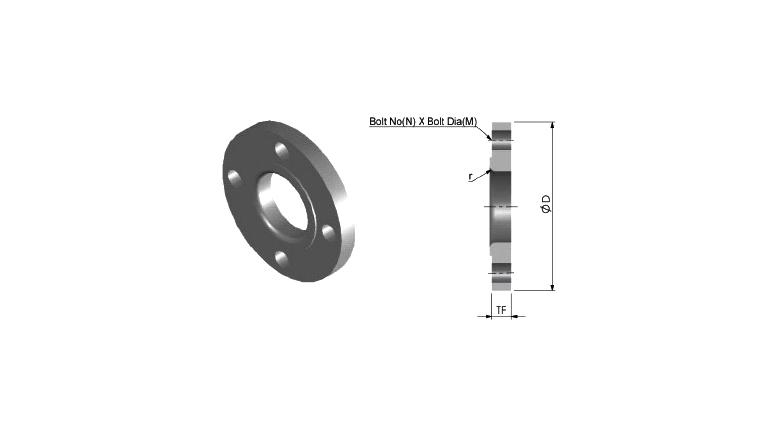

TUBE SIZE

Size 3/4″ 1″ 11/4″ 11/2″ 2″ 21/2″ 3″ 4″ 5″ 6″
D 95 100 125 135 140 155 175 195 250 280
TF 12 14 14 16 16 16 18 18 20 22
N 4 4 4 4 4 4 4 8 8 8
M M12 M12 M16 M16 M16 M16 M16 M16 M20 M20
unit=mm



PIPE SIZE

Size 10A 15A 20A 25A 32A 40A 50A 65A 80A 100A 125A 150A 200A
D JIS 5K 75 80 85 95 115 120 130 155 180 200 235 265 320
TF 9 9 10 10 12 12 14 14 14 16 16 18 20
N 4 4 4 4 4 4 4 4 4 8 8 8 8
M M10 M10 M10 M10 M12 M12 M12 M12 M16 M16 M20 M20 M20
D JIS 10K 90 95 100 125 135 140 155 175 185 210 250 280 330
TF 12 12 14 14 16 16 16 18 18 18 20 22 22
N 4 4 4 4 4 4 4 4 8 8 8 8 12
M M12 M12 M12 M16 M16 M16 M16 M16 M16 M16 M20 M20 M20
unit=mm



MANUAL-WELDING

Size 100A 125A 150A 200A 250A 300
D JIS 5K 200 235 265 320 385 430
TF 16 16 18 20 22 22
N 8 8 8 8 12 12
M M16 M20 M20 M20 M22 M22
D JIS 10K 210 250 280 330 400 445
TF 18 20 22 22 24 24
N 8 8 8 12 12 16
M M16 M20 M20 M20 M22 M22
unit=mm
