PRODUCT | SIZE | CONNECTION | GRADE | MATERIAL | ||||||||||||||

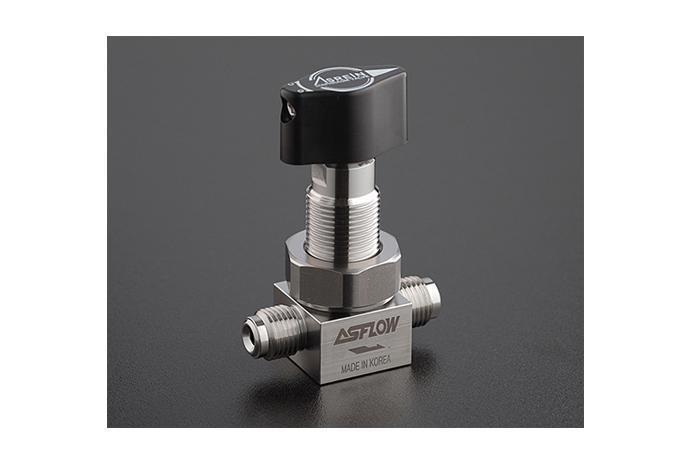

QDV | Quarter-Turn Diaphragm Valve |
04 | 1/4″ | MV | Male | B | BA | 316LS | SUS316L Single melt | |||||||||
06 | 3/8″ | FV | Female | E | EP | 316LD | SUS316L Double melt | |||||||||||
08 | 1/2″ | LOK | Lok | 304 | SUS304 | |||||||||||||
12 | 3/4″ | BW | Butt Weld | |||||||||||||||
Product Dimension (mm) | ||||||||||||||||||
Model | Connection | Size | A | B | C | D | E | F | G | H | ||||||||
Male | 1/4″ | 57 | 28 | 80 | 11 | 37 | 25.4 | 28 | – | |||||||||
3/8″ | 77 | 38 | 100 | 16 | 52 | 28 | 38 | – | ||||||||||
1/2″ | 77 | 38 | 100 | 16 | 52 | 28 | 38 | – | ||||||||||
3/4″ | 122 | 38 | 110 | 22 | 52 | 28 | 38 | – | ||||||||||
Female | 1/4″ | 70.6 | 28 | 80 | 11 | 37 | 25.4 | 28 | – | |||||||||
3/8″ | 83 | 38 | 100 | 16 | 52 | 28 | 38 | – | ||||||||||
1/2″ | 83 | 38 | 100 | 16 | 52 | 28 | 38 | – | ||||||||||
3/4″ | 122 | 38 | 110 | 22 | 52 | 28 | 38 | – | ||||||||||
Lok | 1/4″ | 55 | 28 | 80 | 11 | 37 | 25.4 | 28 | – | |||||||||
3/8″ | 70 | 38 | 100 | 16 | 52 | 28 | 38 | – | ||||||||||
1/2″ | 70 | 38 | 100 | 16 | 52 | 28 | 38 | – | ||||||||||
3/4″ | 84 | 38 | 110 | 22 | 52 | 28 | 38 | – | ||||||||||
Butt Weld | 1/4″ | 54 | 28 | 80 | 11 | 37 | 25.4 | 28 | – | |||||||||
3/8″ | 69 | 38 | 100 | 16 | 52 | 28 | 38 | – | ||||||||||
1/2″ | 69 | 38 | 100 | 16 | 52 | 28 | 38 | – | ||||||||||
3/4″ | 150 | 38 | 110 | 22 | 52 | 28 | 38 | – |
