Convection Gauge
Model Name
CG202
Series
Vacuum Gauge
Data
-
Manufacturer information
provider logo
ATOVAC

MFC Contorller, Convection Gauge & Controller, lon Gauge & Controller, Capacitance Manometer, Throttle Valve Controller

Problem with product info?
Update request
Manufacturer
ATOVAC
Brand
-
SKU
129713
Product Name
Convection Gauge
Model Name
CG202
Size
-
Weight
-
Product Details

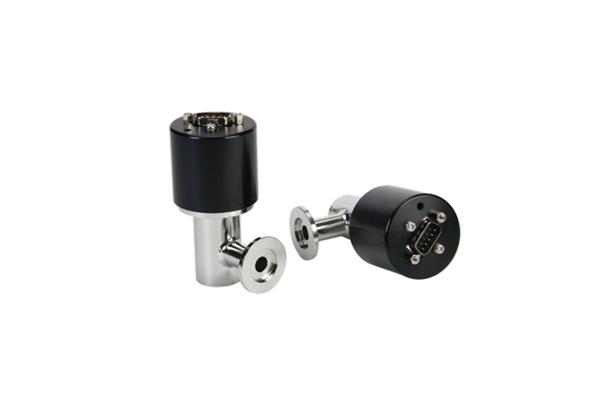

CG202 Convection Gauge

Convection Gauge (CG202)의 진공 측정범위는 8.0 x 10-4 ~ 1000 torr 입니다.

Convection Gauge (CG202)을 사용하기 위해서는 CG2000 Model 이나, CVC2200 Model이 필요 합니다.




Specifications

Gauge Type

ATovacSeries202

Mounting Position

Horizontal

Filament

Platinum 99.999%

Operating Pressure

8.0 x 10-4 to 1000 Torr

Operating Temperature

0 ~ 50°C

Maximum Baking Temperature

50°C

Flanges

NW16 ISO-KF, NW25 ISO-KF, Mini CF, rotatable

Internal Volume

About 40 cc

* Sensor Wire replacement is available.
