product Image

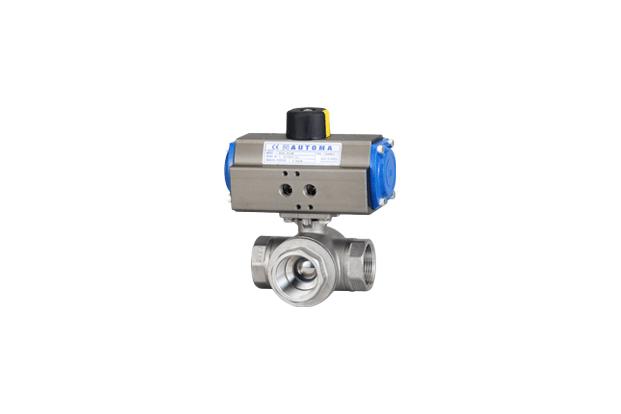

Automatic Valve (3-Way Screw Ball Valve)
Model Name
AD40-8S3W
Series
Pneumatic Products
Data
-
Manufacturer information
provider logo
AUTOMA

Automatic valve, Electric ball valve, Control valve, Globe valve, Actuator and more

Problem with product info?
Update request
Manufacturer
AUTOMA
Brand
-
SKU
135219
Product Name
Automatic Valve (3-Way Screw Ball Valve)
Model Name
AD40-8S3W, AD40-10S3W, AD40-15S3W, AD50-20S3W, AD50-25S3W, AD65-32S3W, AD65-40S3W, AD65-50S3W
Size
-
Weight
-
Product Details



Specification

Valve Size 8A(1/4") ~ 50A(2")
Actuator Model AD40 /AD50 / AD65
Actuator Type Pneumatic Double Acting(with Dry Air)
Operating Pressure 4 ~ 7kg/㎠
Rotating Angle 90˚ ±5˚
Fluid Temperature '-10℃ ~ 90℃
Rating 1000 PSI
Body Material Body(A351 CF8M) / Ball(A182 F304, 316) / Seat(PTTE)
Accessory Solenoid Valve, Limit Switch Box, Air filter Regulator, E/P Positioner





Dimension

Unit : mm
Model Size A A1 H (Approx) L L/2 Ød Ød1
mm inch
AD40-8S3W 8A 1/4" 108 60 130 73 36 11 1/4"
AD40-10S3W 10A 3/8" 108 60 130 73 36 11 3/8"
AD40-15S3W 15A 1/2" 108 60 130 73 36 12 1/2"
AD50-20S3W 20A 3/4" 162 75 149 85 42 15 3/4"
AD50-25S3W 25A 1" 162 75 157 100 50 20 1"
AD65-32S3W 32A 1-1/4" 202 89 180 113 56 25 1-1/4"
AD65-40S3W 40A 1-1/2" 202 89 186 127 63 32 1-1/2"
AD65-50S3W 50A 2" 202 89 197 150 75 38 2"
