BYUCKSAN

Systone

Model

Series

Ceiling

Transaction Process

Please contact the manufacturer/supplier.

Payment

Contact the manufacturer/supplier.

Delivery

Contact the manufacturer/supplier.

Shipment

Contact the manufacturer/supplier.

Origin

Contact the manufacturer/supplier.

Description

Introduction

Byucksan Systone is the noninflammable/insulating/sound absorbing ceiling system formed in sheets from the main material of fibrous mineral wool as melting blast-furnace slag and natural minerals at a high temperature.

Byucksan Systone shows non-flammability which is a compulsory condition of the fire safety for modern buildings, and could solve the noise issues of various buildings by absorbing/blocking the in/outdoor noises that may affect the work efficiency. Moreover, creative design and size preciseness of Byucksan Systone provides creative ideas while establishing an interior design.

Certificates

Application

School, office, commercial, hospital, hall, etc.

Features

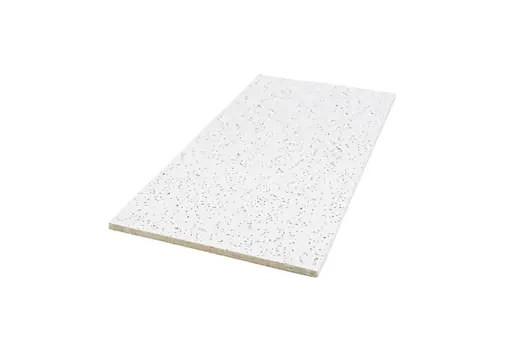

Systone FISSURED (Standard Form)

Standard of Mineral Wool Sound Absorbing

Ceiling Plate with Natural fissured pattern which is appropriate anywhere, and make interior look better.

　　
SF-1200

Size : 12×300×600㎜
Packing : 18sheets (3.24㎡)/BOX

　　
SMF-440(9T)

Size : 9×300×600㎜
Packing : 24sheets(4.32㎡)/BOX
SMF-440(9T) is only available when constructing with CUBE, STRIPE products.

　　
SMF-440(12T)

Size : 12×300×600㎜
Packing : 18sheets(3.24㎡)/BOX
SMF-440(12T) is only available when constructing with CUBE, STRIPE products.

Systone STRIPE

(Product with thickness of 15mm)

Stripe patterned mineral wool sound absorbing ceiling system creating diverse ceiling with combination of border

　　
SMS-4412(3D)

Size : 15×300×600㎜
Packing : 18sheets (3.24㎡)/BOX

　　
SMS-4412(6D)

Size : 15×300×600㎜
Packing : 18sheets(3.24㎡)/BOX

　　
SMS-4424

Size : 15×300×600㎜
Packing : 18sheets(3.24㎡)/BOX

Systone CUBE

(Product with thickness of 15mm)

Stripe patterned mineral wool sound absorbing ceiling system creating diverse ceiling with combination of border

　　
SMC-4412(3D)

Size : 15×300×600㎜
Packing : 18sheets (3.24㎡)/BOX

　　
SMC-4412(6D)

Size : 15×300×600㎜
Packing : 18sheets(3.24㎡)/BOX

　　
SMC-4404

Size : 15×300×600㎜
Packing : 18sheets(3.24㎡)/BOX

　　
SMC-4406

Size : 15×300×600㎜
Packing : 18sheets(3.24㎡)/BOX

Item	Unit	Performance		Test Method (KS, etc.)	Standard by KS L 9105
Item	Unit	12mm	15mm	Test Method (KS, etc.)	Standard by KS L 9105
Density	kg/㎥	390±20	390±20	KS L 9105	500 or lower
Moisture content	%	1.0	1.0		3.0 or lower
Bending failure load	N	160	210		Thickness 12mm : 60 or higher Thickness 15mm : 90 or higher
Thermal resistance	㎡·K/W	0.22	0.28	KS F 2277	Thickness 12mm : 0.19 or higher Thickness 15mm : 0.23 or higher
Average acoustic absorption rate	NRC	0.50~0.60	0.50~0.60	KS F 2805	NRC 0.3 (0.21~0.40) NRC 0.5 (0.41~0.60) NRC 0.7 (0.61~0.80) 250Hz, 500Hz, 1,000Hz, Average value of 2,000Hz
Flame retardant level	-	Non-flammability		KS F ISO 1182 KS F 2271	Compliance with Non-flammability standard

※ The abovementioned physical properties are the average test values, and may vary depending on test conditions
