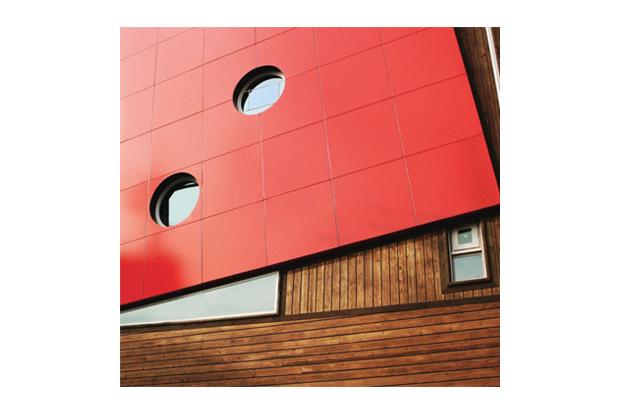

Baritone Panel
Model Name
-
Data
카탈로그-벽산-외장재-바리톤패널
Manufacturer information
provider logo

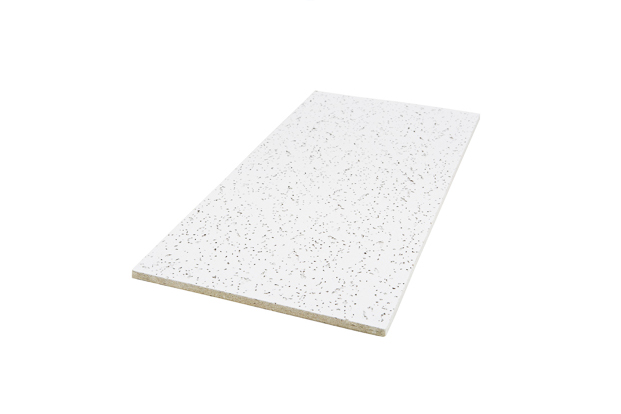

BYUCKSANSystone, Glass wool, Isopink, Gypsum board atc.
Problem with product info?
Update request
Manufacturer
BYUCKSAN
Brand
-
SKU
137229
Product Name
Baritone Panel
Model Name
-
Size
-
Weight
-
Product Details

Byucksan Baritone Panel is convenient to maintain as it is easily wipe in case of surface contamination by dust with low absorptiveness (1.0% or less).





Introduction

Byucksan Baritone Panel has strong durability and high strength as compressed with high temperature after impregnating tens of natural kraft paper and UV coating paper to resin.

Surface is consists of UV coating layers, so it is strong in breaching, discoloration and UV rays, excellent in weather resistance and easy to maintain compared to other exterior systems.





Features

Size

Thickness(mm) Size (Width x Length) Pattern
8T / 10T 1,240 x 2,450mm Wood
1,240 x 4,900mm





PATTERN

※ The color of this product may be slightly different from the sample.

Item Unit Specific Standard Test Method
Density g/㎤ 1.40 or higher KS F 3200
Flexural Strength (Length/Width) N/㎟ 100 or higher KS F 3200
Tensile Strength (Width/Length) N/㎟(MPa) 70 or higher KS M ISO 527-2
Flexural Strength if damp (Length/Width) N/㎟ 100 or higher KS F 3200
Bending Failure Load (Length/Width) N 4,000 or higher KS F 3200
Absorption Rate % 1.0 or lower KS F 3200
Length Change Rate by Absorption % 0.2 or lower KS F 3200
Thickness Expansion Rate by Absorption % 0.5 or lower KS F 3200
Impact Resistance - Shall have no crack or flaking on the surface. KS F 3200
Contamination Resistance (Red Crayon) - N/A (Standard Grey, Color Table No.3 or higher) KS F 3200
Acid Resistance - N/A KS F 3200
Alkali Resistance - N/A KS F 3200
Weather Resistance Gray scale Gray scale 4 or higher ISO 4892-2 (2,000 hours)
Formaldehyde Emission mg/L Average 0.2 or lower KS F 3200

Detailed Drawing





Panel Installation Procedure





Precautions When Installing Panel

1. When constructing panel with screw, must tighten screw with equal strength to each panel and maintain optimum smoothness.
     Gasket pad shall be THK1.6mm, and if using thick pad, smoothness is not even.

2. Please be careful not to break the screw head if tightening screw with too much power.

3. Use SST'L screw for the screw. (Stainless 410/Color TOX)

4. Use screw coated with designated color on the head.

5. Construct in consideration of characteristics (construction and expansion) of panel while constructing in each season.
