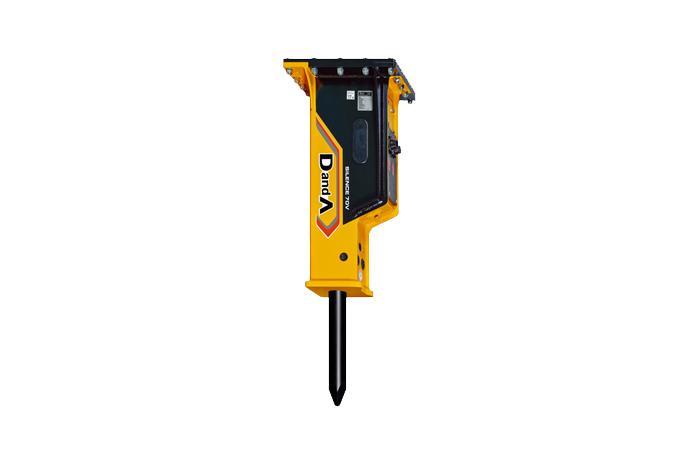

Hydraulic Breaker Manufacturer
Description
Operating weight includes standard top bracket with bracket pins, one chisel and two hydraulic hoses.
Above specifications are provided only for references connected with carrier machines.
Spectification
ITEMS / MODEL | D&A 40V | D&A 60V | D&A 70V | D&A 80V | D&A 100DP | D&A 130DP | |
Operation Weight | kg | 260 | 330 | 495 | 545 | 800 | 900 |
lbs | 573 | 728 | 1,091 | 1,202 | 1,764 | 1,984 | |
Required Oil Flow | lpm | 35~70 | 40~110 | 45~100 | 50~100 | 75~120 | 80~140 |
gpm | 9.25~18.49 | 10.57~29.06 | 11.89~26.42 | 13.21~26.42 | 19.81~31.70 | 21.13~36.98 | |
Operating Pressure | kg/㎠ | 110~165 | 120~165 | 140~170 | 140~170 | 140~180 | 140~180 |
psi | 1,565~2,347 | 1,707~2,347 | 1,991~2,418 | 1,991~2,418 | 1,991~2,560 | 1,991~2,560 | |
Number of Blow (Long stroke) | bpm | 550~1,300 | 380~1,100 | 400~800 | 350~700 | 350~600 | 350~600 |
Number of Blow (Short stroke) | bpm | - | - | 600~1,100 | 490~1,000 | 600~900 | 600~900 |
Hammer Tool | mm | 70 | 75 | 80 | 90 | 95 | 105 |
inch | 2.76 | 2.95 | 3.15 | 3.54 | 3.74 | 4.13 | |
Relief Valve Setting Pressure | kg/㎠ | 175 | 175 | 175 | 175 | 210 | 210 |
psi | 2,489 | 2,489 | 2,489 | 2,489 | 2,987 | 2,987 | |
Suitable Carrier | ton | 3.0~6.5 | 4.5~8.0 | 4.5~8.0 | 6.0~10.0 | 8.0~12.5 | 10~15 |
lbs | 6,614~14,330 | 9,921~17,637 | 9,921~17,637 | 13,228~22,046 | 17,637~27,558 | 22,046~33,069 | |
Accumlator Pressure | kg/㎠ | 40 | 40 | 40 | 40 | 55 | 55 |
psi | 569 | 569 | 569 | 569 | 782 | 782 |
Remark
Above specifications are subject to change without notice.
