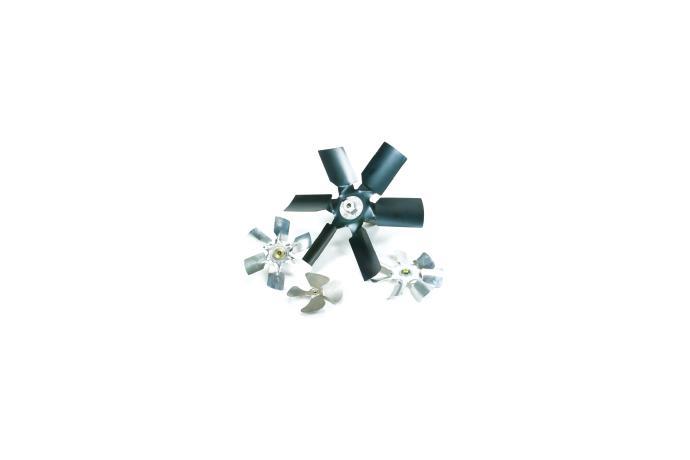

IMPELLER Axial-Flow (Propeller) Type Impeller
Characteristics
The name comes from the fact that the air flows in the axial direction. It demonstrates excellent efficiency even when a large quantity of air is delivered. And with a simple structure, it has the merit of taking up small space for its installation but noise generation is a drawback
Hub and Material
Normally for the materials of the boss and the product, AI, GI, and EGI are used, and customization is available to the specifications desire by a customer
Applications
The product is widely used for temperature and humidity control, aeration of a duct, painting, gas discharge, smoke discharge, cooling water tower in ordinary buildings, plants, and ships
Outward Drawing
Dimension
Product Name | Material | Diameter (ØD) | Height (H) | Wheel Num (P) | Boss inside diameter (Ød) |
DX-150-000 | AL | 150 | 37 | 5 | 8 |
DX-204-000 | AL | 204 | 50 | 4 | 8, 10 |
DX-210-000 | AL | 210 | 39 | 6 | 12 |
DX-210-000 | AL | 210 | 33 | 7 | 12 |
DX-220-000 | AL, GI | 220 | 39 | 6 | 12 |
DX-230-000 | AL, GI | 228 | 39 | 4 | 12 |
DX-240-000 | AL, GI | 240 | 39 | 6 | 12 |
DX-250-000 | AL, GI | 250 | 39 | 6 | 12 |
DX-450-000 | AL, GI | 450 | 51 | 6 | 12 |
