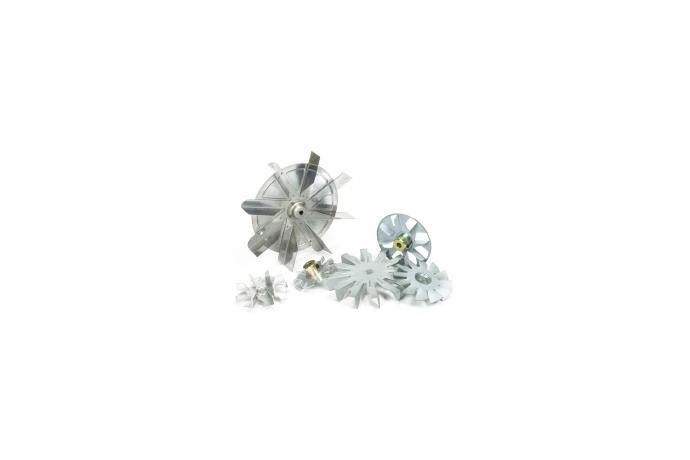

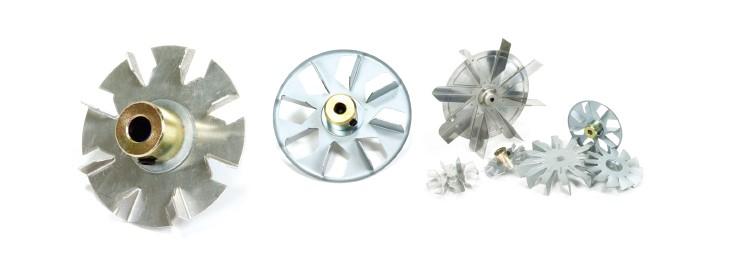

IMPELLER Plate Type Impeller
Characteristics
With radial wings, the product is either flat or leans forward. The radial form is easy to clean, thus fit for dusty locations, but is not as good as other types of blowers i effciency or noise
Hub and Material
Normally for the materials of the boss and the product, AI, GI, and EGI are used, and customization is available to the specifications desired by a customer.
Applications
For cooling TR motor, cooling directly driven motor, and other wind blower motors

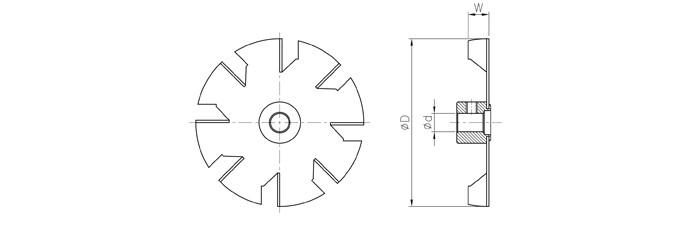

Outward Drawing

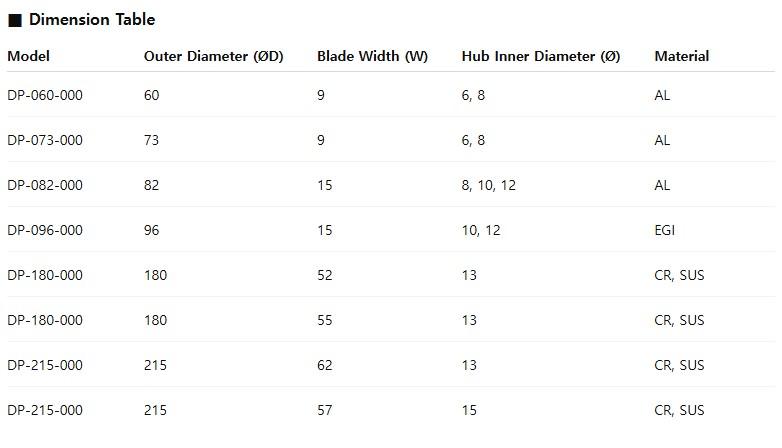

Dimension
Product Name | Material | Diameter (ØD) | Wheel width (W) | Boss inside diameter (Ø) |
DP-060-000 | AL | 60 | 9 | 6, 8 |
DP-073-000 | AL | 73 | 9 | 6, 8 |
DP-082-000 | AL | 82 | 15 | 8, 10, 12 |
DP-096-000 | EGI | 96 | 15 | 12 |
DP-180-000 | CR, SUS | 180 | 52 | 13 |
DP-180-000 | CR, SUS | 180 | 55 | 13 |
DP-215-000 | CR, SUS | 215 | 62 | 13 |
DP-215-000 | CR, SUS | 215 | 57 | 13 |
