· MAX. Flow(Q) 58㎥/hr
· MAX. Head(H) 55m
· Motor Power 0.55~1.5kW (0.75~2HP)
· Available Power 1PH 200~230V/50&60Hz dooch
Description

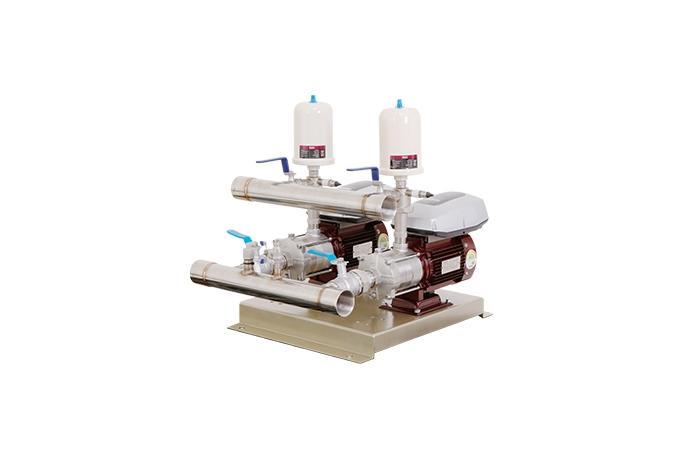

SQ-DHF(T) pumps are built on the basis of DHF pumps. The main difference between the DHF and the SQ-DHF(T) pump is the variable frequency drive.
Enhanced with the SQ-Drive, SQ-DHF(T) pump together with the appropriate sensor is turned into an intelligent, variable speed pumping system.
The SQ-Drives adjust the motor speed which in turn provides constant pressure or differential pressure to the flow rate.
※ Inlet/Outlet casing material
- "T" indicates : GCD450
- Without "T" indicates : Stainless steel
Application
Pressure boosting systems
Domestic water supply systems
Cooling Systems
Air-conditioning systems
Small Industrial water supply systems
Horticultural irrigation system
Features
Each pump are individually controlled by SQ drive.
High reliability (Multi-master control)
Constant discharge pressure
Reduced tank and panel size
Less wear of the system during operation
Compact assembly and installation
High reliability
