product Image
횡형단단펌프
Model Name
DHM
Series
Horizontal Pump
Data

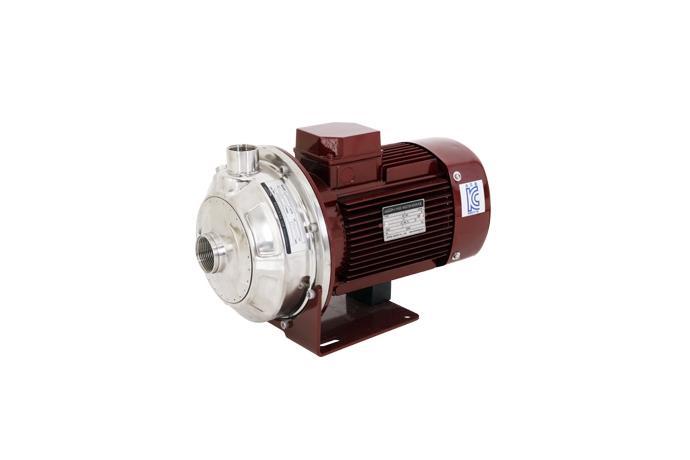

HORIZONTAL MULTI/SINGLESTAGE PUMP
Manufacturer information
provider logo
DOOCH PUMP

Booster pump, Vertical multistage pump, Inline pump, Inverter automatic pump, Submersible pump and more

Problem with product info?
Update request
Manufacturer
DOOCH PUMP
Brand
-
SKU
60968
Product Name
횡형단단펌프
Model Name
DHM
Size
-
Weight
-
Product Details


· 최대유량   400㎥/h

· 최대양정   40m

· 사용압력   최대 8bar

· 펌프동력   0.75kW ~ 2.2kW(1HP~3HP)

· 전원사양   단상 220V 60Hz, 삼상 220V/380V 60Hz




상세설명

컴팩트한 구조와 분해, 조립이 간편한 펌프



용도

급수가압용, 세정시스템, 냉각장치, 공기정화용, 여과장치, 농업 및 관개용



주요특징

단단원심펌프 구조
컴팩트한 구조
나사식구조로 입토출 배관연결이 용이
유체접촉부가 스테인레스스틸로 제작되어 부식에 강함
펌프 장착 후 배관의 해체 없이도 분해 및 수리가 용이
