product Image

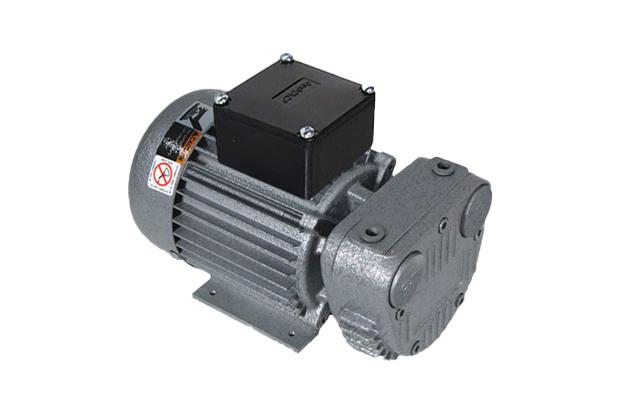

Rotary Vane Vacuum Pumps
Model Name
SML-120
Series
SML Series
Data
-
Manufacturer information
provider logo
DOOVAC

Vacuum pump manufacturer, Industrial pump, Medical suction, Tank type vacuum pump and more

Problem with product info?
Update request
Manufacturer
DOOVAC
Brand
-
SKU
134392
Product Name
Rotary Vane Vacuum Pumps
Model Name
SML-120
Size
-
Weight
-
Product Details
Technical Data SML 120
Nominal Displacment 50Hz ℓ/min 100
Nominal Displacment 60Hz ℓ/min 120
Ultimate Pressure - mbar 2
Motor Version-3 50Hz V -
Motor Version-1 50Hz V 110/220
Nominal Motor Rating-3 - kW -
Nominal Motor Rating-1 - kW 0.2
Nominal Motor Speed 50Hz min-1 1420
Nominal Motor Speed 60Hz min-1 1700
Sound Level - dB(A) 50
Water Vapour Tolerance Max - mbar -
Water Vapour Capacity - ℓ/h -
Operating Temperature Ambient - °C 40
Oil Filling - liter 0.1
Weight Appox 50Hz kg 12
Weight Appox 60Hz kg 12



Performance Curve
