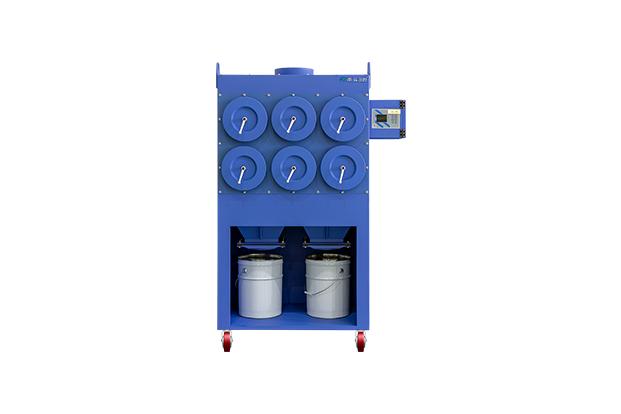

Horizontal Down Flow Type Dust Collector (HD Series)
Model Name
HD-200
Series
Fume Dust Collector
Data
-
Manufacturer information
provider logo
DUCLEANDust collector manufacturer, Environmental equipment, Air pollution prevention facility and more
Problem with product info?
Update request
Manufacturer
DUCLEAN
Brand
-
SKU
133936
Product Name
Horizontal Down Flow Type Dust Collector (HD Series)
Model Name
HD-200, HD-300, HD-500, HD-500FC, HD-750, HD-1000, ACT-100, ACT-200, ACT-300, ACT-500, ACT-750, ACT-1000
Size
-
Weight
-
Product Details

Features

Structured for easy to separate and assemble filter cover and replace filters, structured for easy discharge of dust



Filter Type

Cartridge Filter



Application

Dry dust, laser processing machine, plasma processing machine, cast iron / cast steel gouging work



Specifications

Product Specifications

TYPE Air volume(CMM) static pressure(mmAq) output(Kw) size weight(kg)
A width B length C height D total width E total length F total height G inlet(Ø) H outlet(Ø)
HD-200 30 230 1.5 650 1175 1185 1249 885 227 200 250 310
HD-300 40 230 2.2 790 1213 1525 1294 1025 227 250 300 350
HD-500 65 230 3.7 790 1280 1525 1361 1025 227 250 300 380
HD-500FC 65 230 3.7 900 1280 1525 1161 1137 228 250 300 600
HD-750 80 250 5.5 900 1330 1525 1411 1135 228 300 350 680
HD-1000 100 250 3.7 X 2SET 900 1458 1815 1539 1135 228 350 400 1080



Power and Filter Specifcations

TYPE Power filter
60Hz(Premium),50Hz size quantity type
ACT-100 220V/380V 3P AC60HZ,
440V(OPTION),50HZ(OPTION)
Ø230 X 125산 X 40DP X 610L 2 Membrane Filter
ACT-200 3
ACT-300 4
ACT-500 6
ACT-750 6
ACT-1000 8

※ This specification may change without notice for performance improvement.



Filter

HD SERIES Filter

HD SERIES FilterAdopted PTFE Membrane Filter

• The pressure loss is kept low and constant and it is easy to exhaust, so it can be operated with low impact or low pressure, which increases the life of filter cloth.

• The dust exhaustion ability which the filter itself has and the excellent surface filtration function make it easy to shake off the dust on the surface of the filter bag.

• By almost completely collecting dust from the beginning of operation, it prevents the release of harmful substances and the recovery rate of added dust is high.

Dust Collection Efficiency Comparison(AT 0.3 µm)



Features

Clean Dust Treatment

• Dust collecting function during operation

• Dust leakage prevention function

Down Flow Method

• Extends filter life with intaking dust in free fall method

Simple Exchangeable Filter Replacement System

• With filter cover and filter separating structure, anyone can easily replace the filter.

• Filter replacement time is shortened compared to the conventional method.



TURBO BLOWER Information

 In-house turbo fan production for the most efficient performance management system

High air volume

high wind pressure

low vibration

low noise



Controller

The digital controller that puts your convenience as its number one priority

• Applied color LCD and soft touch switch

• Interface: Adopted standard mode to enable linked operation with external contacts

• Error Report: Displaying error alarm and alarm history when error occurs

• Digital differential pressure, digital current, operation integration, error status indicator function

• Dedicated Inverter Controller: Manual/Auto control of inverter
