This product is manufactured by
DUKIN INDUSTRIES

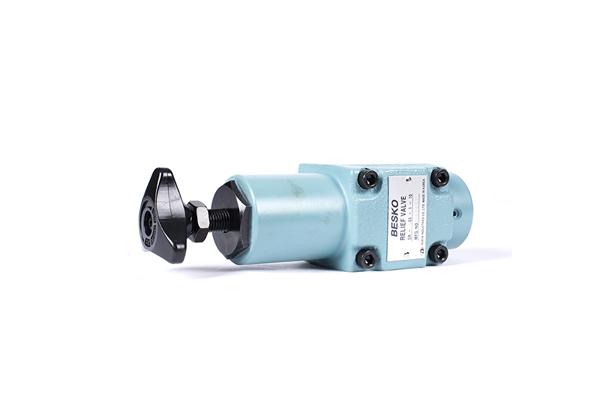

DIRECT OPERATED RELIEF VALVE
Model Name
SR-T03
Data
카탈로그-득인기공-PRESSURE CONTROL VALVE-DIRECT OPERATED RELIEF VALVE
Manufacturer information
DUKIN INDUSTRIES
Hydraulic machine manufacturer, Hand pump, Hydraulic valve, Unit, Cylinder
Inquiry
How to order
Problem with product info?
Update request
Manufacturer
DUKIN INDUSTRIES
Brand
-
SKU
125637
Product Name
DIRECT OPERATED RELIEF VALVE
Model Name
SR-T03, SR-G03
Size
-
Weight
-
Product Details
Product features
· Has a low override pressure and nearly the same performance as the balance piston type.
· Because it is a dustproof structure, chattering does not occur even at high pressure.
· Wide pressure regulation is available and pressure regulation in low pressure range is also easy.
Pressure-flow properties
| Pressure drop properties
|
Type symbol
Specification
| Type symbol | Title of diameter | Pressure adjustment range (kgf/㎠) | Top of flow rate (ℓ/min) | Weight (kg) | ||
|---|---|---|---|---|---|---|
| THREAD Connected type | GASKET Attachment type | T type | G type | |||
| SR-T03-1 | SR-G03-1 | 3/8 | 3~70 | 30 | 2 | 2.5 |
External dimension
Cross section structure
