This product is manufactured by
DUKIN INDUSTRIES

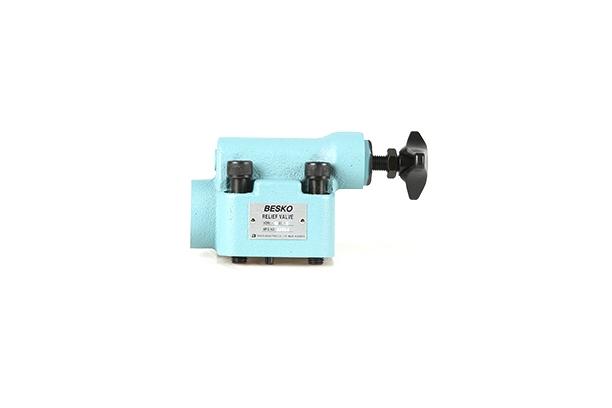

PILOT OPERATED RELEIF VALVE
Model Name
HDRI-T03
Data
카탈로그-득인기공-PRESSURE CONTROL VALVE-PILOT OPERATED RELEIF VALVE
Manufacturer information
DUKIN INDUSTRIES
Hydraulic machine manufacturer, Hand pump, Hydraulic valve, Unit, Cylinder
Inquiry
How to order
Problem with product info?
Update request
Manufacturer
DUKIN INDUSTRIES
Brand
-
SKU
125650
Product Name
PILOT OPERATED RELEIF VALVE
Model Name
HDRI-T03, HDRI-G03
Size
-
Weight
-
Product Details
제품특징
· 광범위한 유량영역으로 작동이 정확하고 민감하여 chattering의 발생이 없고 안정되어 있다.
· Override 압력이 적어 hysteresis도 거의 없다.
· Vent 접속구를 사용하면 원격조작으로 주회로 압력제어가 가능하다.
압력 유량 특성
형식 기호
사양
| 형식기호 | 호칭경 | 압력조정범위 (kgf/㎠) | 최고유량 (ℓ/min) | 중량(kg) | ||
|---|---|---|---|---|---|---|
| thread 접속형 | Gasket 취부형 | T | G | |||
| HDRI-T03-1 | HDRI-G03-1 | ⅜ | 5 ~ 70 35 ~ 210 | 30 | 2.9 | 3.5 |
외형 치수도
단면 구조도
O-RING SIZE
| 품번 | 부품명칭 | 형식/부품사양 | 수량 | |
|---|---|---|---|---|
| HDRI-T03 | HDRI-G03 | |||
| 1 | O-ring | - | 1B P 10 | 1 |
| 2 | O-ring | - | 1B P 18 | 2 |
| 3 | O-ring | IB P 22A | IB P 22A | 1 |
| 4 | O-ring | IA P11 | IA P11 | 1 |
