This product is manufactured by
DUKIN INDUSTRIES

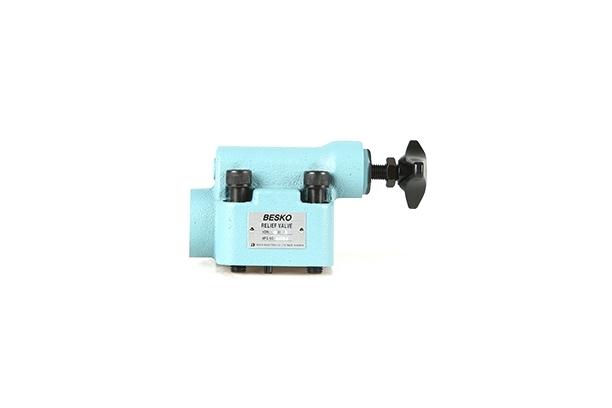

PILOT OPERATED RELEIF VALVE
Model Name
HDRI-G03
Data
카탈로그-득인기공-PRESSURE CONTROL VALVE- PILOT OPERATED RELEIF VALVE-HDRI-G03
Manufacturer information
DUKIN INDUSTRIES
Hydraulic machine manufacturer, Hand pump, Hydraulic valve, Unit, Cylinder
Inquiry
How to order
Problem with product info?
Update request
Manufacturer
DUKIN INDUSTRIES
Brand
-
SKU
125652
Product Name
PILOT OPERATED RELEIF VALVE
Model Name
HDRI-G03, HDRI-T03
Size
-
Weight
-
Product Details
제품특징
· 광범위한 유량영역으로 작동이 정확하고 민감하여 chattering의 발생이 없고 안정되어 있다.
· Override 압력이 적어 hysteresis도 거의 없다.
· Vent 접속구를 사용하면 원격조작으로 주회로 압력제어가 가능하다.
성능 곡선
형식 기호
사양
| 형식기호 | 호칭경 | 압력조정범위 (kgf/㎠) | 최고유량 (ℓ/min) | 중량 (kg) | ||
|---|---|---|---|---|---|---|
| THREAD 접속형 | GASKET 취부형 | T형 | G형 | |||
| HDRI-T03-1 | HDRI-G03-1 | 3/8 | 5~70 35~210 | 30 | 2.9 | 3.5 |
| HDRI-T03-3 | HDRI-G03-3 | |||||
SEAL 부품 일람표
| 품번 | 부품명칭 | 형식/부품사양 | 갯수 | |
|---|---|---|---|---|
| HDRI-T03 | HDRI-G03 | |||
| 1 | O-ing | - | IB P10 | 1 |
| 2 | O-ing | - | IB P18 | 2 |
| 3 | O-ing | IB P22A | IB P22A | 1 |
| 4 | O-ing | IA P11 | IA P11 | 1 |
외형 치수도
단면 구조도
