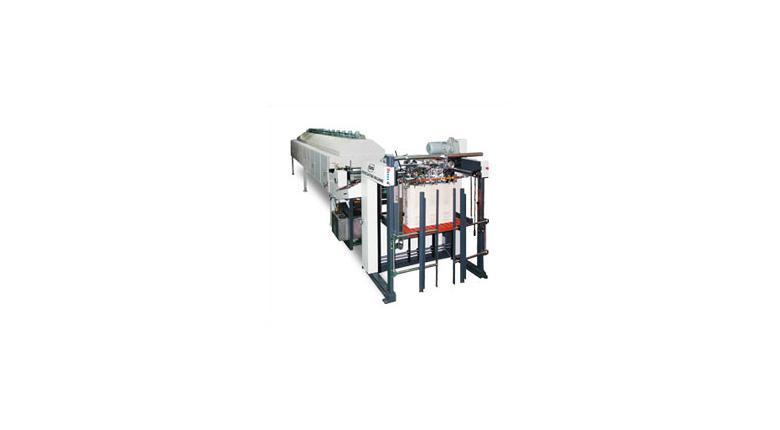

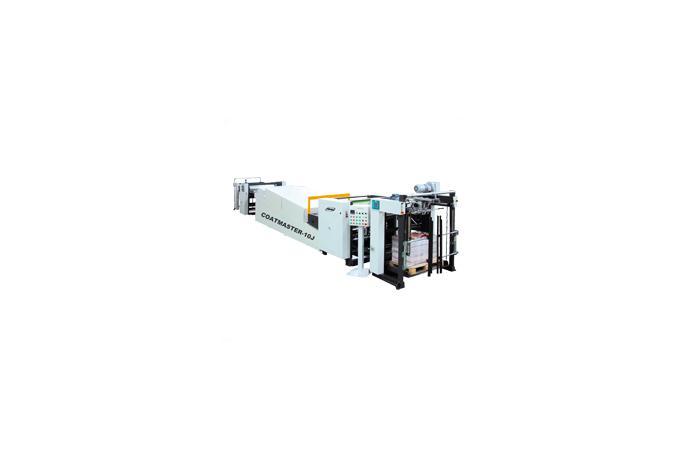

COATMASTER-IDH 10J/S UV , COATMASTER-IDH 10J / SH UV
UV Hologam Coating Machine
Coating Speed : 80m/min
Max. Feeding Speed : 7,000 sheet/ hr
Max. Sheet Format : 1,020(W) x 720(L)mm
[Patent Specification]
1.The method of forming embossing pattern by heating press
mold partially on the printing surface laminated with thermal laminate film
2.Laminator with paper device
Special Features
▶ World First Liquid Laminating type Hologram Transfer Machine with GMP's State-of-the-art Technology
▶ Possible to make various hologram patterns with low cost
▶ Easy to replace a hologram pattern
▶ COATMASTER can lower the production cost since it is affordable and has a long life
▶ Environmentally-friendly hologram method with using soluble paper
▶ Possible to produce various effects
- UV Sopt Varnishing / IR Varnishing / Hologram Coating
▶ One machine can handle UV Coating, CR Coating, and Hologram Operation
▶ All electronic functions are controlled by a Simens & Parker servo system
▶ After coating, the coated paper is stacked automatically
▶ 1m stacking space decreases job cycle time
Coating Speed : 60m/min
Max. Feeding Speed : 9,000 sheet/ hrs
Max. Paper Size : (width) 1020mm x (length) 720mm
[Patent Specification]
1.The method of forming embossing pattern by heating press
mold partially on the printing surface laminated with thermal laminate film
2.Laminator with paper device
Special Features
▶ Coating machine with cutting edge of Electro-Mgnetic Induction Heating Roller for high operating speed & high quality base precise coating. Temperature difference of right & left on the roller is within ±1℃
▶ High efficiency in saving cost of electricity & no complicated system for water discharge out of steam pipe,compared to the existing bolier base systems
▶ By perfect insulation, no heat-leakage outward from Dry Chamber
▶ Center of polishing plate (Calendering section) fully auto-controlled
▶ Automation for the existing system (manual operating parts)
- Automatic controlling for polishing plate
- Automatic controlling for conveyor belt
- By pressing a switch, change to hydraulic pressure tank unit
▶ Hologramer-1020(Option) : By installing this device, super high glossy hologram effects are available
