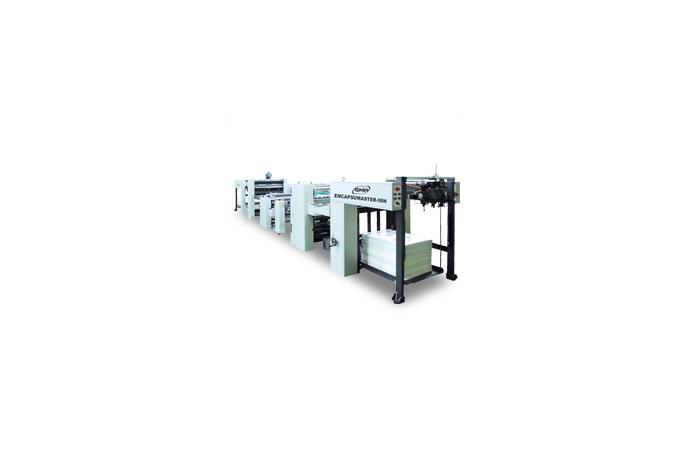

High Speed Encapsulating Machine
Max. Laminating Speed : 60m/min | Max. Feeding Speed : 12,500 sheet/ hr | Max. Sheet Format : 800(W) x 1,100(L)mm
[Patent Specification]
1.The method of forming embossing pattern by heating press mold partially on the printing surface
laminated with thermal laminate film
2.Laminator with paper device
Special Features
▶ Dual side laminator with maximum speed of 60m/min
▶ Possible to use various films(PET, NYLON,OPP etc..)
▶ Automatic Feeding, Laminating, Four Sides Cutting, and Loading
▶ Feeding
- High Speed Stream Feeder with Automatic Feeding (12,500papers/hour, Loading Height 1m)
- Non-Stop Feeding System (Not necessary to change papers)
- Accurate Feeder Distance Alignment Device and side Alignment Device controlled by Servo Drive
- Possible to add Heidelberg Suction Head(74) as an option
▶ Laminating
- Pair of large Preheating Roll for Perfect laminating
- Induction Heating System with accurate temperature controlling system
- Maintain uniform film tension with duplex break controller
- Water Chiller and Top & Bottom Chill Rolls for effective cooling with high speed laminating
▶ Cutting & Loading
- EPC(Edge Position Control) which can maintain the location of the film consistently
- 2 types of Side Slitter Structure for convenient use (Razor blade slitting, Shear slitting)
- Accurate Cutting Location with Cross Cutting Structure Controlling by Servo Drive
- Automatic Loading Auto Stacker
