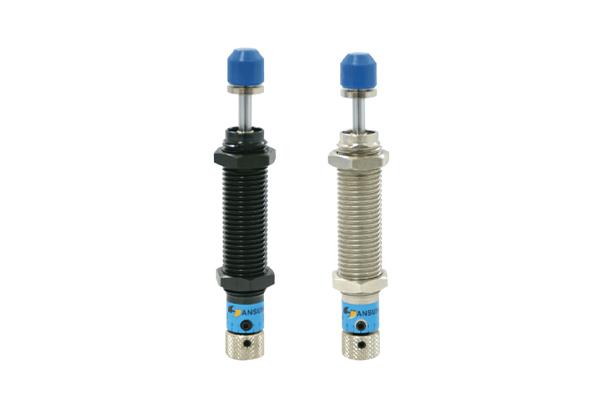

Shock Absorber manufacturer, UPA, SCA, CSC HS, SUS Series
Dimensions
Model | Stroke | A | B | C | ØD | E | F | ØG | H | I | J | ØD1 | ØD2 | L | M/K |
UPA1410 | 10 | 93.5 | 70.5 | 10 | 4 | 20 | 4 | 11 | 4 | 17 | 19.6 | 15 | 18 | 26 | M14×P1.5 |
Capacity Chart
Model | S Stroke 행정 | E c | E d | W e | F | F | Weight |
UPA1410 | 10 | 15 | 24,500 | 0.3~90 | 680 | 5~11 | 65 |
