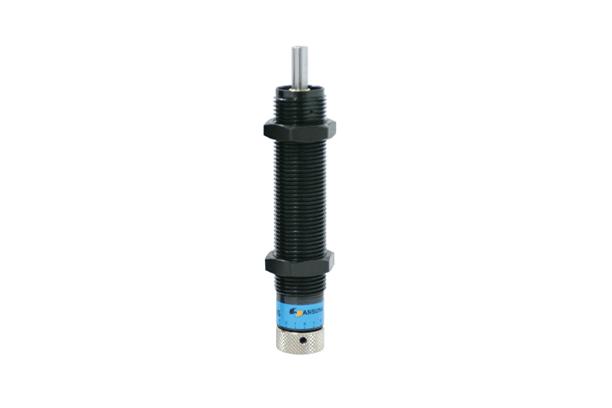

Shock Absorber manufacturer, UPA, SCA, CSC HS, SUS Series
Dimensions
Model | Stroke | A | B | C | ØD | E | F | ØG | H | I | J | ØD1 | ØD2 | L | M/K |
PA1612 | 12 | 103 | 91 | 12 | 4 | 22 | 6 | - | 6 | 22 | 25.4 | 17 | 19 | 25.4 | M16×P1.5 |
Capacity Chart
Model | S Stroke 행정 | E c | E d | W e | F | F | Weight |
PA1612 | 12 | 20 | 30,000 | 1.3~200 | 1,000 | 7~14 | 110 |
