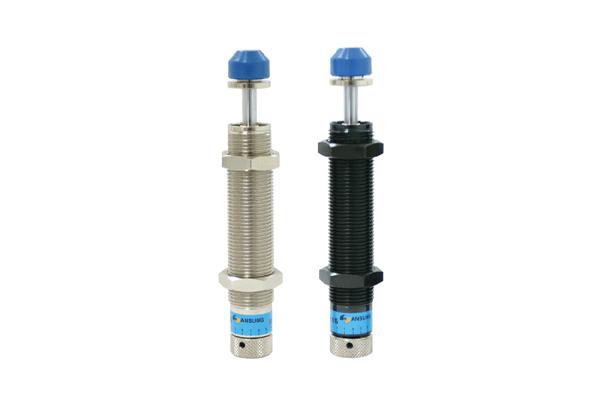

Shock Absorber manufacturer, UPA, SCA, CSC HS, SUS Series
Dimensions
Model | Stroke | A | B | C | ØD | E | F | ØG | H | I | J | ØD1 | ØD2 | L | M/K |
UPA2015 | 15 | 128.5 | 98 | 15 | 6 | 22 | 6 | 18 | 6 | 24 | 27.7 | 21 | 23 | 35 | M20×P1.5 |
Capacity Chart
Model | S Stroke 행정 | E c | E d | W e | F | F | Weight |
UPA2015 | 15 | 25 | 35,000 | 1.3~220 | 1,160 | 8~15 | 150 |
