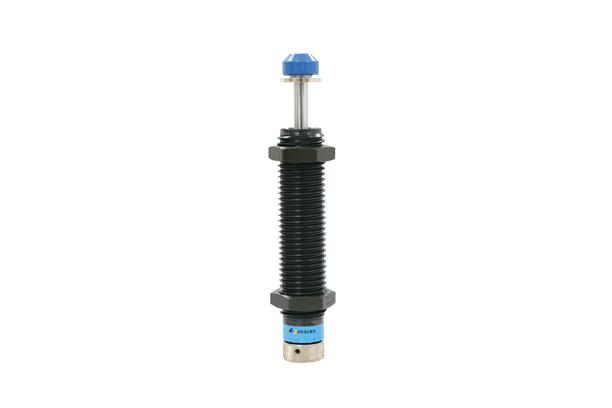

Shock Absorber manufacturer, UPA, SCA, CSC HS, SUS Series
Dimensions
Model | Stroke | A | B | C | ØD | E | F | ØG | H | I | J | ØD1 | ØD2 | L | M/K |
UPA2725 | 25 | 168 | 127 | 25 | 8 | 24 | 8 | 22 | 8 | 32 | 37 | 28 | 31 | 40 | M27×P3.0 M27×P1.5 |
Capacity Chart
Model | S Stroke 행정 | E c | E d | W e | F | F | Weight |
UPA2725 | 25 | 70 | 70,000 | 9.8~1,300 | 3,800 | 15~45 | 390 |
