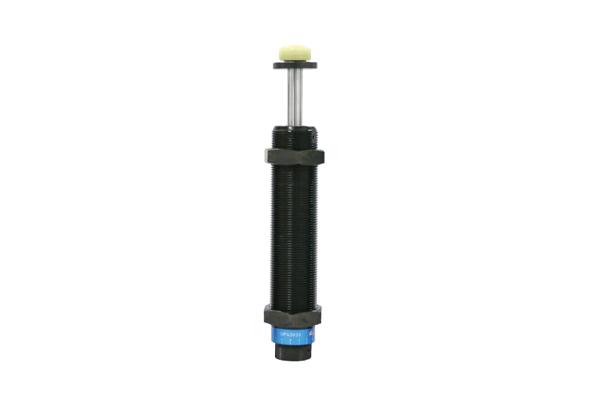

Shock Absorber manufacturer, UPA, SCA, CSC HS, SUS Series
Dimensions
Model | Stroke | A | B | C | ØD | E | F | ØG | M/K |
UPA3035 | 35 | 198 | 148 | 35 | 10 | 24 | 10 | 28 | M30×P1.5 |
L/N,S/C,S/F,R/F | H | I | J | ØD1 | ØD2 | L | a | b | c | d | e | f | K |
UPA3035 | 10 | 36 | 41.1 | M30×P1.5 |
Capacity Chart
Model | S Stroke 행정 | E c | E d | W e | F | F | Weight |
UPA3035 | 35 | 170 | 80,000 | 15~1,950 | 5,000 | 30~60 | 600 |
