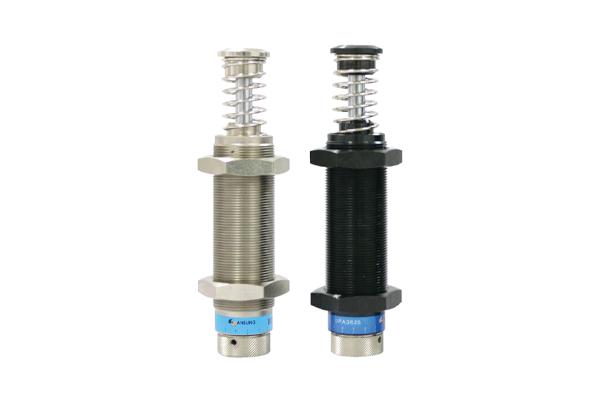

Shock Absorber manufacturer, UPA, SCA, CSC HS, SUS Series
Dimensions
Model | Stroke | A | B | C | ØD | E | F | ØG | M/K |
UPA3625 | 25 | 182 | 133 | 25 | 10 | 26 | 10 | 34 | M36×P1.5 |
L/N,S/C,S/F,R/F | H | I | J | ØD1 | ØD2 | L | a | b | c | d | e | f | K |
UPA3625 | 10 | 46 | 53.1 | 37 | 45 | 60 | 32 | 45 | 9 | 6 | 41.3 | 58.8 | M36×P1.5 |
Capacity Chart
Model | S Stroke 행정 | E c | E d | W e | F | F | Weight |
UPA3625 | 25 | 180 | 90,000 | 17~2,450 | 6,000 | 40~75 | 680 |
