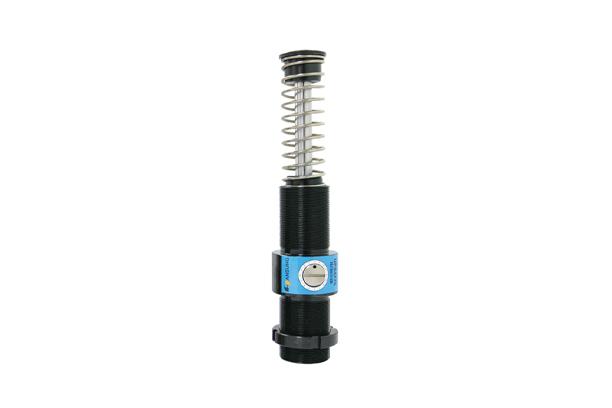

Shock Absorber manufacturer, UPA, SCA, CSC HS, SUS Series
Dimensions
Model | Stroke | A | B | C | D | E | ØF | G | ØH | ØI | J | M/K |
UPA4275 | 75 | 267 | 217 | 144 | 56 | 55 | 14 | 74 | 45 | 38 | 54 | M42×P1.5 |
L/N,S/C,S/F,R/F | J | H | ØD1 | ØD2 | L | a | b | c | d | e | f | K |
UPA42OOSeries | 54 | 10 | 44 | 58 | 48 | 41.5 | 60 | 12 | 9 | 60.5 | 80 | M42×P1.5 |
Capacity Chart
Model | S Stroke 행정 | E c | E d | W e | F | F | Weight |
UPA4250 | 75 | 750 | 195,000 | 55~10,500 | 12,000 | 35~100 | 1,600 |
