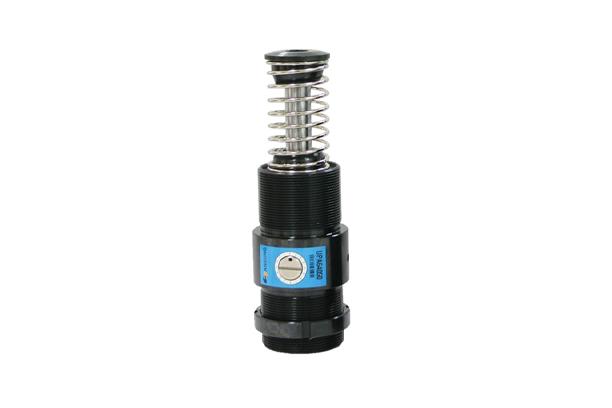

Shock Absorber manufacturer, UPA, SCA, CSC HS, SUS Series
Dimensions
Model | Stroke | A | B | C | D | E | ØF | G | ØH | ØI | J | M/K |
UPA64050 | 50 | 241 | 224 | 138 | 50 | 49 | 20 | 67.5 | 58 | 50 | 74 | M64×P2.0 |
L/N,S/C,S/F,R/F | J | H | ØD1 | ØD2 | L | a | b | c | d | e | f | K |
UPA64OOSeries | 74 | 13 | 66 | 75 | 60 | 70 | 90 | 14 | 10 | 83.5 | 105 | M64×P2.0 |
Capacity Chart
Model | S Stroke 행정 | E c | E d | W e | F | F | Weight |
UPA64050 | 50 | 1,250 | 245,000 | 70~16,000 | 33,000 | 80~165 | 3,500 |
