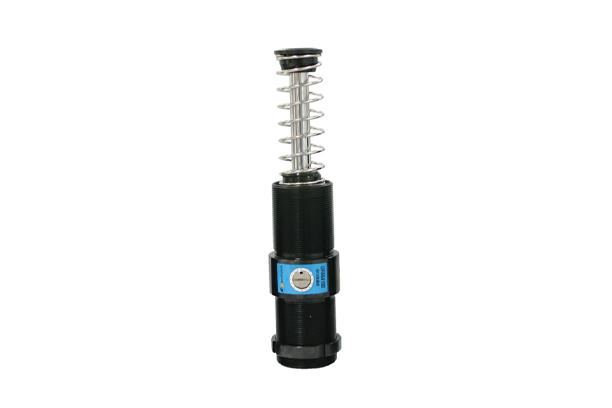

Shock Absorber manufacturer, UPA, SCA, CSC HS, SUS Series
Dimensions
Model | Stroke | A | B | C | D | E | ØF | G | ØH | ØI | J | M/K |
UPA64100 | 100 | 341 | 324 | 188 | 74 | 74 | 20 | 95 | 58 | 50 | 74 | M64×P2.0 |
L/N,S/C,S/F,R/F | J | H | ØD1 | ØD2 | L | a | b | c | d | e | f | K |
UPA64OOSeries | 74 | 13 | 66 | 75 | 60 | 70 | 90 | 14 | 10 | 83.5 | 105 | M64×P2.0 |
Capacity Chart
Model | S Stroke 행정 | E c | E d | W e | F | F | Weight |
UPA64100 | 100 | 2,550 | 335,000 | 115~19,000 | 33,000 | 75~210 | 4,700 |
