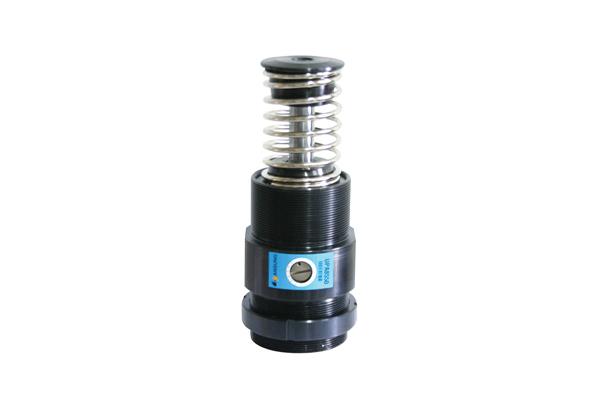

Shock Absorber manufacturer, UPA, SCA, CSC HS, SUS Series
Dimensions
Model | Stroke | A | B | C | D | E | ØF | G | ØH | ØI | M/K |
UPA 8550 | 50 | 270 | 240 | 143 | 45 | 45 | 22 | 75 | 78 | 71 | M85×P2.0 |
L/N,S/C,S/F | J | H | D1 | D2 | L | a | b | c | d | e | f | K |
UPA85OOSeries | 100 | 18 | 88 | 100 | 80 | 76 | 102 | 19 | 14 | M85×P2.0 |
Capacity Chart
Model | S Stroke 행정 | E c | E d | W e | F | F | Weight |
UPA8550 | 50 | 2,400 | 384,000 | 180~34,000 | 66,000 | 140~200 | 6,300 |
