Shock Absorber manufacturer, UPA, SCA, CSC HS, SUS Series

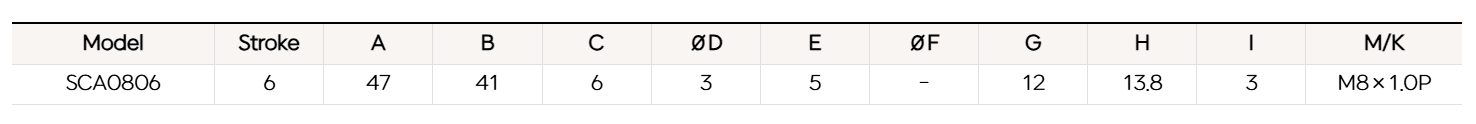

Dimensions
Model | Stroke | A | B | C | ØD | E | F | ØG | M/K |
SCA0806 | 6 | 47 | 41 | 6 | 3 | 5 | 3 | - | M8×P1.0 |

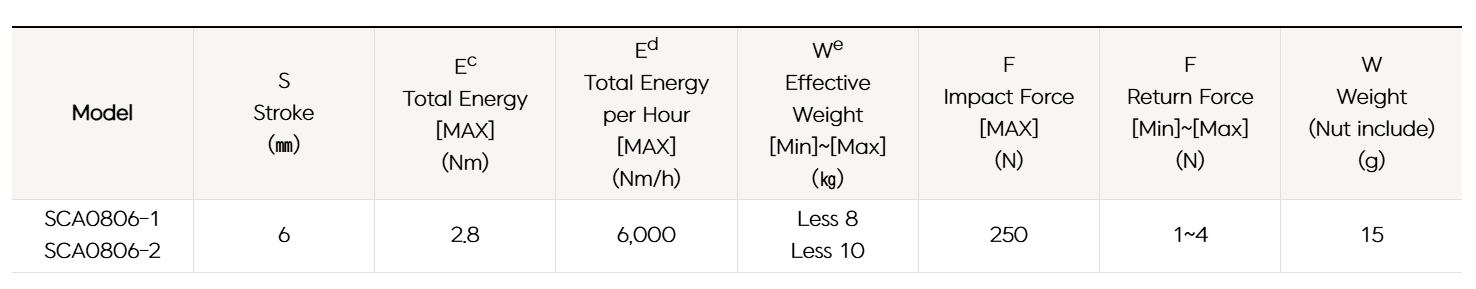

Capacity Chart
Model | S Stroke 행정 | E c | E d | W e | F | F | Weight |
SCA0806-1 | 6 | 2.8 | 6,000 | Less 8 | 250 | 1~4 | 15 |
Technical Data
Special steel piston rod
