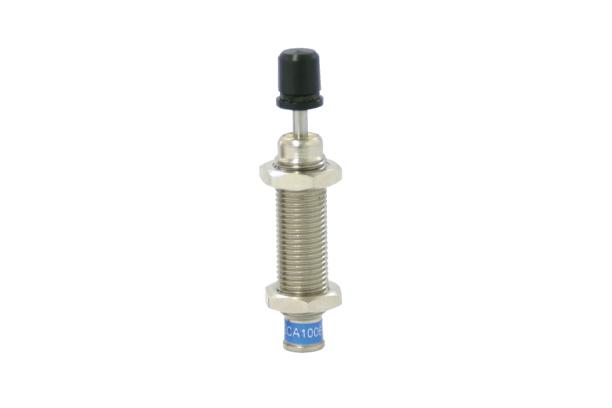

Shock Absorber manufacturer, UPA, SCA, CSC HS, SUS Series

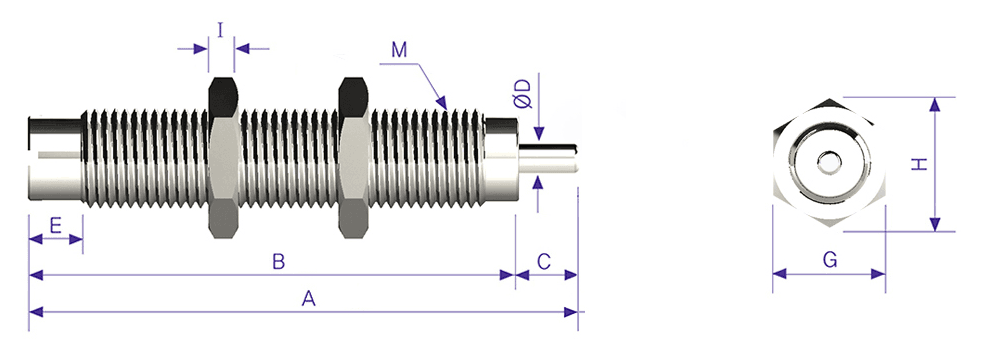

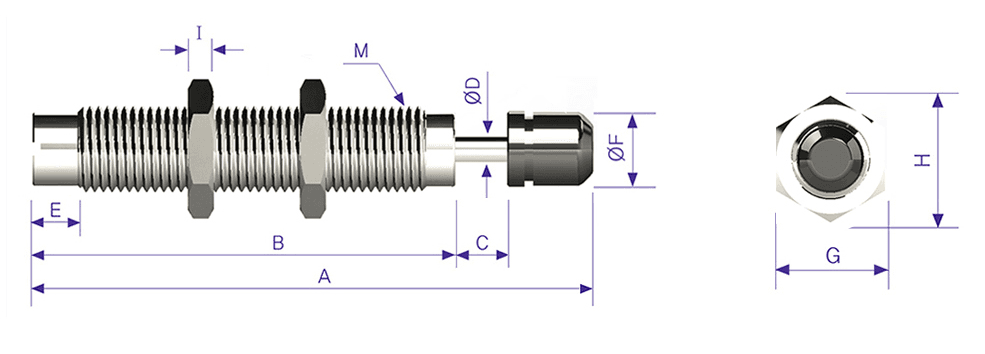

Dimensions
Model | Stroke | A | B | C | ØD | E | F | ØG | M/K |
SCA1006B | 6 | 57 | 41 | 6 | 3 | 5 | 3 | 9 | M10×P1.0 |

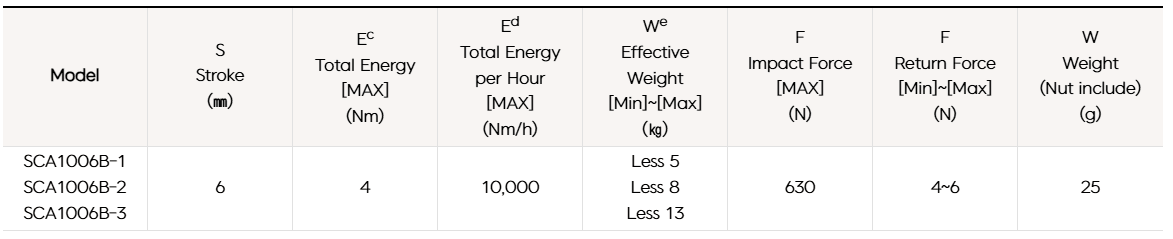

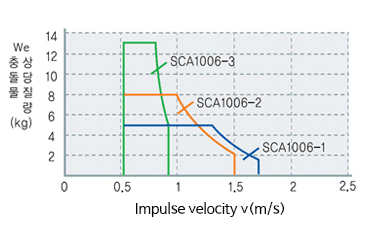

Capacity Chart
Model | S Stroke 행정 | E c Total Energy 총에너지 [Max] (Nm) | E d Total Energy per hour 시간당총에너지 [Max] (Nm/h) | W e Effective Weight 중량효과치 [Min][Max] (Kg) | F Shock Force 충격력 [Max] (N) | F Return Force 복귀력 [Min][Max] (N) | Weight 중량 (g) |
SCA1006-1 SCA1006-2 SCA1006-3 | 6 | 4 | 10,000 | Less 5 Less 8 Less 13 | 630 | 4~6 | 25 |
Technical Data
Special steel piston rod
