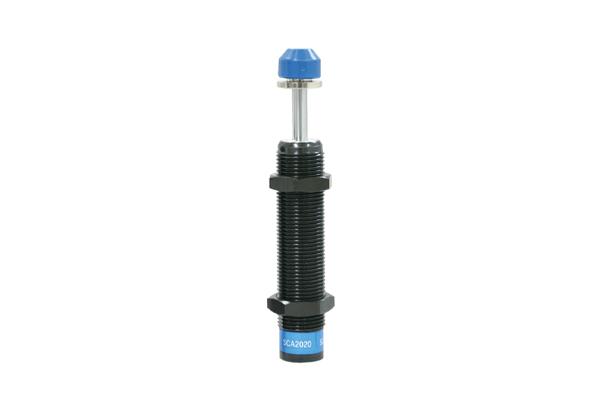

Shock Absorber manufacturer, UPA, SCA, CSC HS, SUS Series

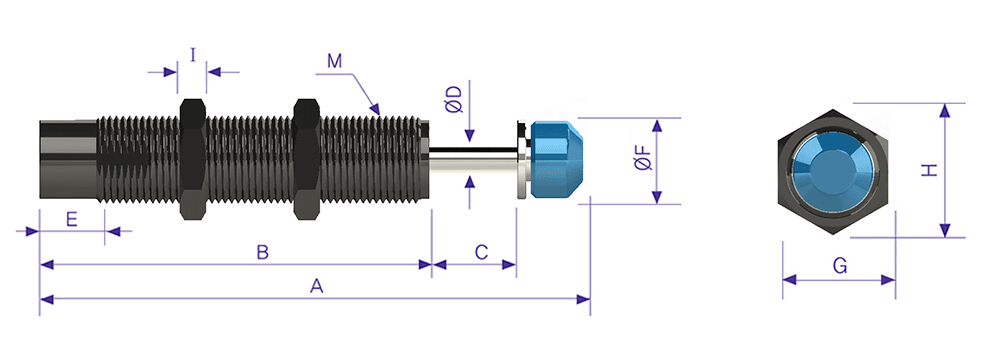

Dimensions
Model | Stroke | A | B | C | ØD | E | F | ØG | M/K |
SCA2020B | 20 | 124 | 88.5 | 20 | 6 | 13 | 6 | 18 | M20×P1.5 |

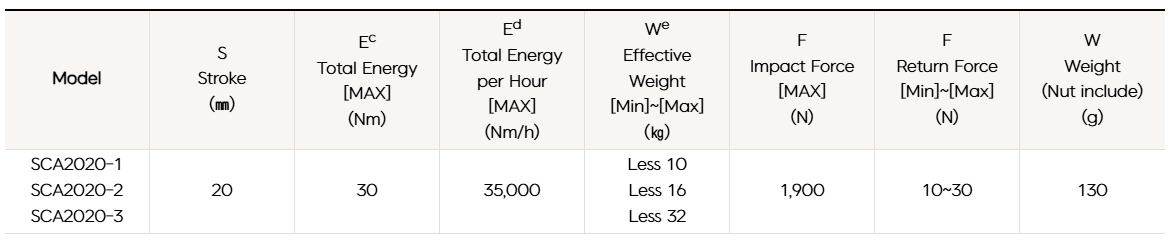

Capacity Chart
Model | S Stroke 행정 | E c Total Energy 총에너지 [Max] (Nm) | E d Total Energy per hour 시간당총에너지 [Max] (Nm/h) | W e Effective Weight 중량효과치 [Min][Max] (Kg) | F Shock Force 충격력 [Max] (N) | F Return Force 복귀력 [Min][Max] (N) | Weight 중량 (g) |
SCA2020-1 SCA2020-2 SCA2020-3 | 20 | 30 | 35,000 | Less 10 Less 16 Less 32 | 1,900 | 10~30 | 130 |
SCA1420-1 SCA1420-2 SCA1420-3 | 20 | 19 | 29,000 | Less 7 Less 17 Less 32 | 1,300 | 7~12 | 80 |
Technical Data
Special steel piston rod
