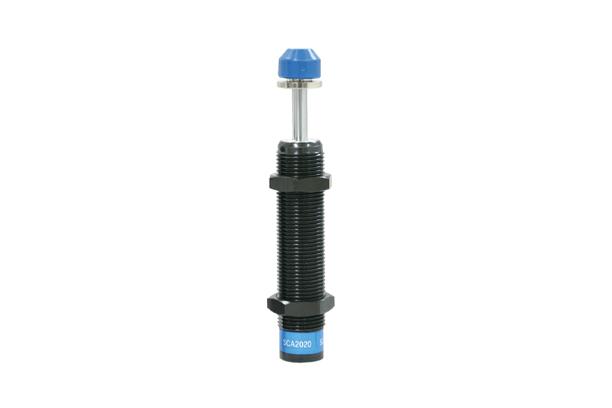

Shock Absorber manufacturer, UPA, SCA, CSC HS, SUS Series

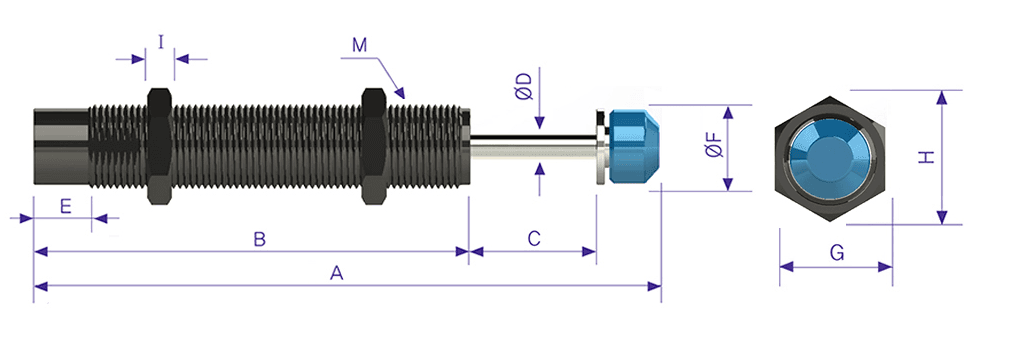

Dimensions
Model | Stroke | A | B | C | ØD | E | F | ØG | M/K |
SCA2030B | 30 | 149 | 103.5 | 30 | 6 | 13 | 6 | 18 | M20×P1.5 |

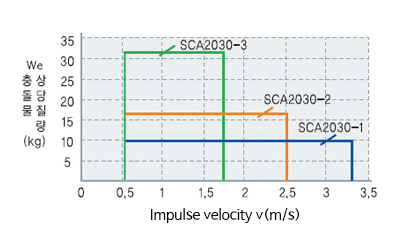

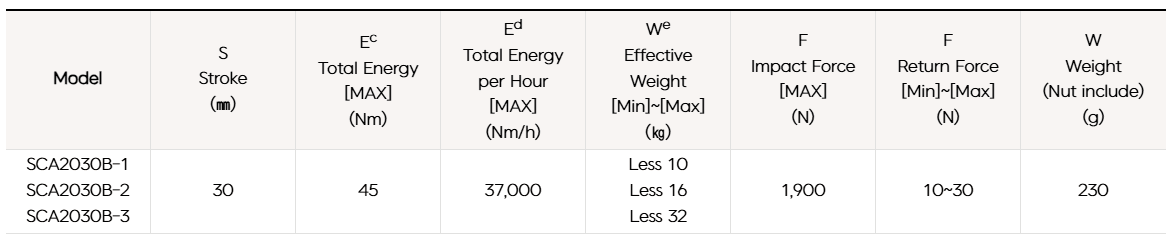

Capacity Chart
Model | S Stroke 행정 | E c Total Energy 총에너지 [Max] (Nm) | E d Total Energy per hour 시간당총에너지 [Max] (Nm/h) | W e Effective Weight 중량효과치 [Min][Max] (Kg) | F Shock Force 충격력 [Max] (N) | F Return Force 복귀력 [Min][Max] (N) | Weight 중량 (g) |
SCA2030-1 SCA2030-2 SCA2030-3 | 30 | 45 | 37,000 | Less 10 Less 16 Less 32 | 1,900 | 10~30 | 230 |
Technical Data
Special steel piston rod
