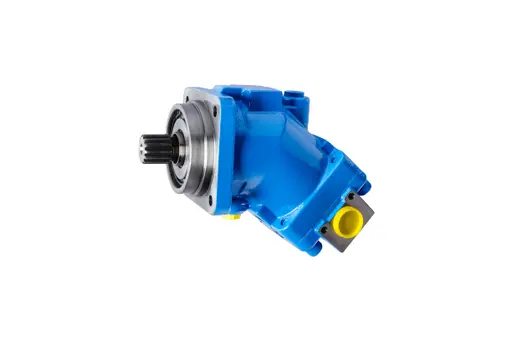

product Image

TOP

Fixed Displacement Hydraulic Motors M Series (ISO Version)
Model Name
M 5_093840
Series
Hydraulic Motors
Data
Catalog-Hydro Leduc-Fixed Displacement Hydraulic Motors-M Series (ISO Version)
Manufacturer information
provider logo
HYDRO LEDUC
Manufacturer of Hydraulic Components, Hydraulic Pumps, Hydraulic Motors and more
Problem with product info?
Update request
Manufacturer
HYDRO LEDUC
Brand
-
SKU
138532
Product Name
Fixed Displacement Hydraulic Motors M Series (ISO Version)
Model Name
M 5_093840, M 12, M 18, M 25, M 28, M 32, M 41, M 45, M 50, M 63, M 80, M 90, M 108, M 108 R (2), M 125, M 160, M 180
Size
-
Weight
-
Product Details

Description of the product :

Hydraulic motors are of bent axis design with a 40° angle, they combine high performance and reduced size envelope.

M series piston motors are designed for fixed and mobile applications, and can be used in either closed or open loop systems.

The service pressure of these motors is up to 400 bar continuous and 450 bar peak, maximum rotation speeds of 3400 to 8000 rpm depending on the model.

M motors exist with keyed or splined shaft.

A and B port options are available.

Characteristics and advantages :

  • high efficiency,
  • displacement 5 cc/rev – CETOP,
  • displacements of 10 to 180 cc/rev – standard ISO3019-2,
  • continuous maximum speed up to 8000 rpm depending on the model,
  • maximum allowable continuous pressure of 400 bar and 450 bar peak,
  • speed sensor and flushing valve as options,
  • on request : anti-cavitation valve, pressure limiter.

Applications :

  • construction equipment (for example : transmission, vibro hammer),
  • fan drive,
  • forestry machines (mulcher, harvester head…),
  • agricultural machinery,
  • heavy winches,
  • mining equipment,
  • municipal equipement (mower, sweeper, salt spray spreader…),
  • defense.

For the dimensions and the order code system, please consult our M series motors catalogue.
