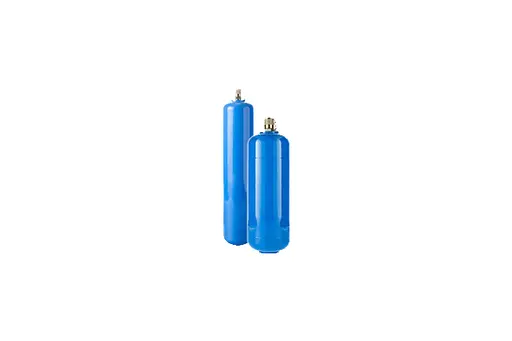

Welded Piston Accumulators AP(L) Series
Model Name
-
Series
Hydropneumatic Accumulators
Data
Catalog-Hydro Leduc-Welded Piston Accumulators-AP(L) Series
Manufacturer information
provider logo
HYDRO LEDUC

Manufacturer of Hydraulic Components, Hydraulic Pumps, Hydraulic Motors and more

Problem with product info?
Update request
Manufacturer
HYDRO LEDUC
Brand
-
SKU
138543
Product Name
Welded Piston Accumulators AP(L) Series
Model Name
-
Size
-
Weight
-
Product Details

Description of the product :

AP(L) piston accumulators are built from a body made of high mechanical resistance forged steel. The fluid-gas separating piston is equipped with seals adapted to the fluids to convey and the temperatures to be supported. AP(L) accumulators, which can be fitted with a charging screw or valve, are a modern solution to the needs of hydraulic circuits.

Characteristics and advantages :

  • useful volumes from 0.16 to 4 litres,
  • max. pressure of 250 or 350 bar depending on the model,
  • extreme operating temperature as standard : -20°C to +80°C,
  • support very high compression ratio,
  • ensure a total and fast discharge of the fluid,
  • can be mounted without position preference,
  • guarantee a very low gas loss over time,
  • can be adapted to the fluids and temperatures of the circuit (on request),
  • long service interval.

Applications :

  • construction equipment,
  • equipment handling,
  • agricultural machinery,
  • shock absorber,
  • energy storage.

To obtain the code of your AP(L) piston accumulator please consult the order code system in our catalogue.
