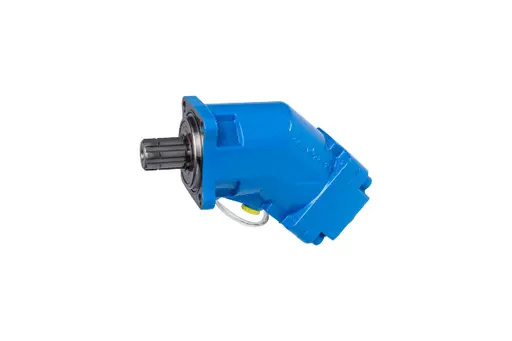

Fixed Displacement Hydraulic Motors MXP/MXA Series
Model Name
MXP 12
Series
Hydraulic Motors
Data
Catalog-Hydro Leduc-Fixed Displacement Hydraulic Motors-MXP Series
Manufacturer information
provider logo
HYDRO LEDUC

Manufacturer of Hydraulic Components, Hydraulic Pumps, Hydraulic Motors and more

Problem with product info?
Update request
Manufacturer
HYDRO LEDUC
Brand
-
SKU
138535
Product Name
Fixed Displacement Hydraulic Motors MXP/MXA Series
Model Name
MXP 12, MXP 18, MXP 25, MXP 32, MXP 41, MXP 50, MXP 63, MXP 80, MXP 108, MXP 126, MXA 25, MXA 32, MXA 41, MXA 50, MXA 63
Size
-
Weight
-
Product Details

Description of the product :

Hydraulic motors are of bent axis design with a 40° angle, they combine high performance and reduced size envelope.

The MXP/MXA motors can be used in either closed or open loop systems.

In displacements from 25 to 126 cc/rev for MXP series, and from 25 to 63 cc/rev for the MXA series (SAE version) these motors are designed for use in truck equipment and construction machinery applications, for intermittent service.

(For heavy duty applications, HYDRO LEDUC offers M/MA and MSI motor series ; see our catalogue).

Characteristics and advantages :

  • MXP series : 25 to 126 cc/rev (according to DIN ISO14),
  • MXA series : 25 to 63 cc/rev (according to SAE J744),
  • maximum rotating speed up to 6900 rpm according to the model,
  • maximum operating pressure up to 400 bar continuous and 450 bar peak,
  • can rotate in either direction of rotation (CW or CCW),
  • can be used in all mounting positions,
  • suitable for intermittent duty cycle.

Applications :

  • sewer-cleaning trucks : water pump drive, vacuum pump,
  • high pressure water-pumps,
  • mobile applications,
  • agricultural machinery.
