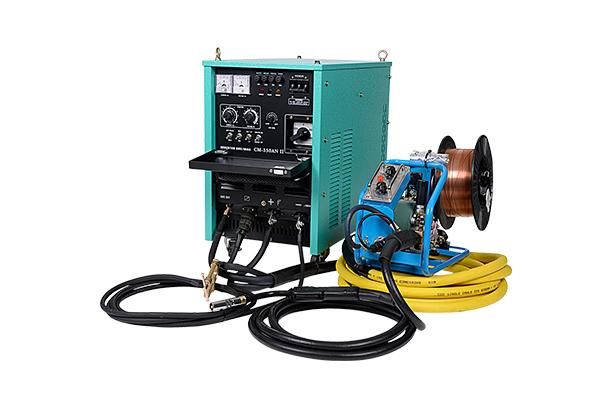

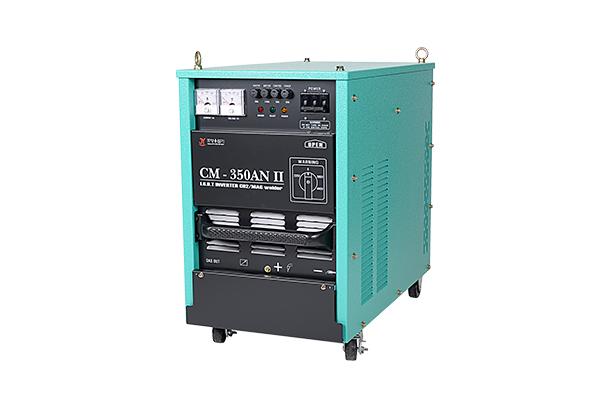

Welding M/C manufacturer, DC arc welder, TIG, Argon, CO2, MAG welder, Plasma cutter, Mixed type gas welder and more
Special Feature
* High-speed welding and sustainable arc
* Reduced generation of spatter
* Energy Saving
* Small size and light weight
* Improved quality and work efficiency with high-speed welding
* Sustainable weldability
* Beautiful welding beads / * Sharp design / * 220V/380V/440V combined use
Specification |
||
Output Current range |
A |
50~350 |
Output Voltage range |
V |
14~36 |
Input Voltage |
V |
220V / 380V / 440V ± 10% |
Input Phase |
|
3 Phase |
Rated Frequency |
Hz |
50/60 |
Rated Input |
KVA |
14.48 |
Rated load Voltage |
V |
36 |
No load Voltage |
V |
68 |
Duty Cycle |
% |
60 |
Controler |
|
I.G.B.T |
Dimension (WxDxH) |
W*D*H (m/m) |
360 x 623 x 580(360 x 693 x 615) |
Weight |
kg |
55 |
※ Product specifications can be changed unexpectedly for product performance improvement.
