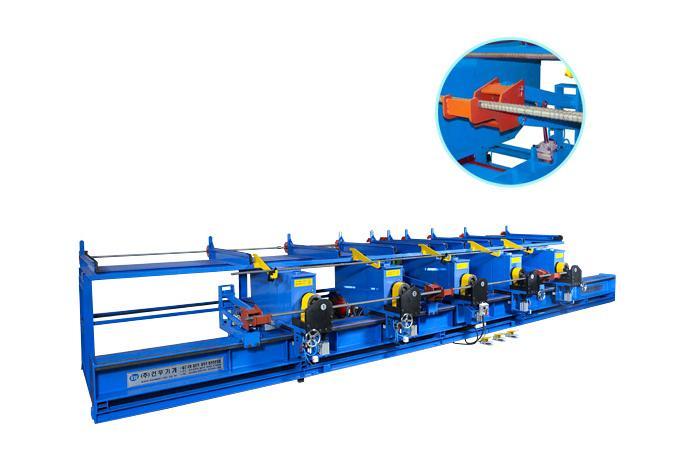

Automatic Rebar Bending Line and System
Model Name
KBS-32-5
Series
Automatic Rebar Bending Line and System
Data
-
Manufacturer information
provider logo
KUNWOO MACHINERY

Rebar Processing Machine Manufacturer, Rebar Cutter, Rebar Bender, Rebar Ring Bender and more

Problem with product info?
Update request
Manufacturer
KUNWOO MACHINERY
Brand
-
SKU
20003
Product Name
Automatic Rebar Bending Line and System
Model Name
KBS-32-5, KBS-32-5A
Size
-
Weight
-
Product Details

Product Features

- The rebars are moved automatically from the supply table to the work table
   The productivity of steel Bending may increase in comparion with the standing Machine by 4 through 7 times more

- When it is needed to replace the roller during operation, you can change it by adjusting Sub Control Box without having to go to Main Control Box.

- This is easy to control so that even the unskilled workman can operate it with facility.

- It is easy to change the form of steel Bending into various other types. (Refer to the kinds of steel Bending.)

- All the parts and components of the entire machine can be manufactured 100% domestically.
  So we can provide all the necessary parts and after-sales services.

- A perfect Automatic steel processing Machine can be achieved with the combination of Automatic steel Cutting and Bending Machine.

- The head part of the machine can be moved through the special conveyor.



Product Specifications

Power consumption (kw)24kwHead unit3.75kw X 5
Supply table1.5kw X 1
Compressor5.5kw X 1
Electric220V / 380V 3Phase
Bending capacityD10 ~ D32
Bending angle15˚~ 180˚
Working speed5sec/180˚ 6.3rpm
Supply table speed7.2m/min
Loading capacity (kg)2,500kg
Dimensions (m/m)(L×W×H)10,000×2,570×1,650L:possible adjustment
Weight (kg)10,000kg





Efficiency / No.of bars at one time

Bar dia (mm)D10D13D16D19D22D25D29D32Remarks
SD-400129643211
Available roller specsØ49Ø49Ø62Ø74Ø84Ø94Ø104Ø114



One Day Productive Capacity (8hr)

Patternsbar dia (mm)One time bending Q’tyPer hour bending Q’tyOne day bending Q’tyOne day bending weightRemarks


D1012pieces1080pieces1080×8=8,6409,600kg


D139pieces810pieces810×8=6,48013,000kg


D166pieces540pieces540×8=4,32019,000kg


D252pieces260pieces260×8=2,08048,000kg


D321pieces130pieces130×8=1,04047,000kg



Bending patterns




Plan
