1. Description

■ This equipment switches 24 types of R, G, B, HD, VD signals without signal
    resistance or disturbance by receiving 24 types of R, G, B, H, V input/output
    signals.

■ Built-in RS-232C port(2 ports) and LAN port enable remote control function for
    Key-Board and Program.

■ The front LCD Display panel enables easy view of inputs and outputs.

■ Built-in Control Key in front of the device enables input/output operation without
    Remote Control Panel.

■ Transmission status can be viewed with RUN / TX / RX LED while remote
    controlling.

■ Memory back-up function helps to memorize the last status while it is turned off.

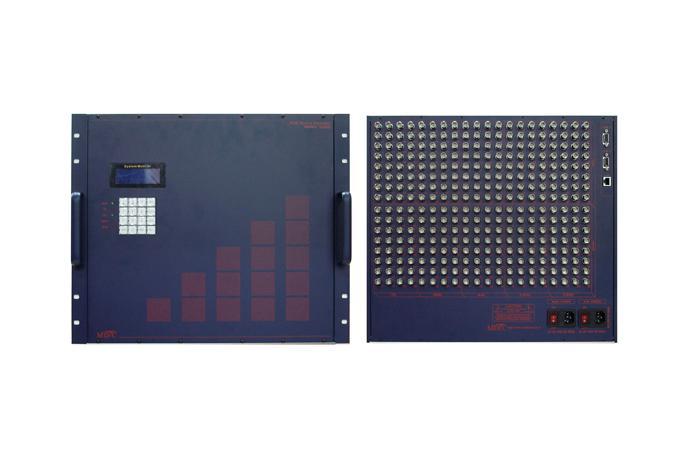

2. Panel Drawing

3. Specification

■ Video Part
  - Input/Output number : 24 x 24
  - Input/Output type : RGBHV
  - Input/Output connector : 5 BNC
  - Input/Output level : analog RGB : 1.2Vp-p Max, H-Sync, V-Sync : TTL level
  - Input/Output impedance : 75Ohm ± 1%
  - Bandwidth : 600 MHz (-3 dB), fully loaded
  - Crosstalk : -78 dB @ 5 MHz, -70 dB @ 10 MHz
  - S/N : below 70dB

■ Remote Control Part
  - Serial control : 2 RS-232, D-sub 9pin connector
  - Ethernet control : 1 RJ-45 female connector

■ Case & Power Part
  - Power source : AC 85 ~ 240V 50 ~ 60Hz
  - Temperature : 0℃ ~ 40℃
  - Power consumption : below 70Watt
  - Type : 19” Rack Type
  - Dimensions : 483(W) * 400.5(H) * 270(D) mm, 9RU
