1. Description

○ This equipment accepts 4 link DVI source and distributes equalized digital
    video signals to an output of device without distortion or reduction of signals.

○ High resolution video quality can be connected to any video installation such as
    Project, PDP, LCD TV, LCD Monitor ect.

○ It is fully compatible with various resolution (VGA – UVGA) and TMDS MODE

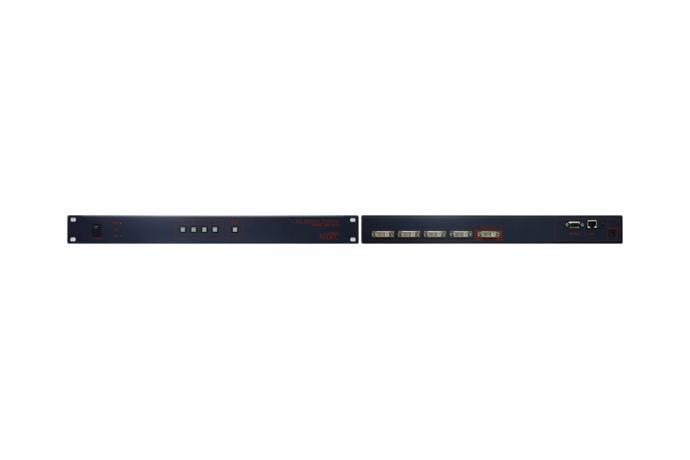

2. Panel Drawing

3. Specification

■ DVI Part
  - Input/Output number : 4 x 1
  - Input/Output type : TMDS signals, Digital RGB, DVI-D Single link
  - Input/Output connector : DVI-I Dual link female
  - Resolution range : UP to WUXGA, 1080p, 1920 x 1200, 60Hz
  - Maximum data rate : 6.75Gbps(2.25Gbps per color)
  - Standards DVI 1.0, HDMI 1.3
  - Equalization Automatic
  - Re-clocking Automatic
  - Input selector 4-key, EDID R/W 1-key

■ Remote Control Part
  - Serial control : 1 RS-232, D-sub 9pin connector
  - Ethernet control(Option) : 1 RJ-45 female connector

■ Case & Power Part
  - Power source : DC 5V /2A (Adaptor)
  - Temperature : 0℃ ~ 40℃
  - Power consumption : Below 10Watt
  - Type : 19” rack type
  - Dimensions : 483(W) * 44.5(H) * 150(D) mm
