1. Description

○ This remote power controller unit is to turn on/off the power supply for many
    devices such as monitor from a single or multi location.

○ Its remote control function allows controlling the devices individually or
    simultaneously and also enables to control by operating soft ware and interface.
○ Controlled via front switches, built-in correspondent ports enable to control
    operating soft ware.

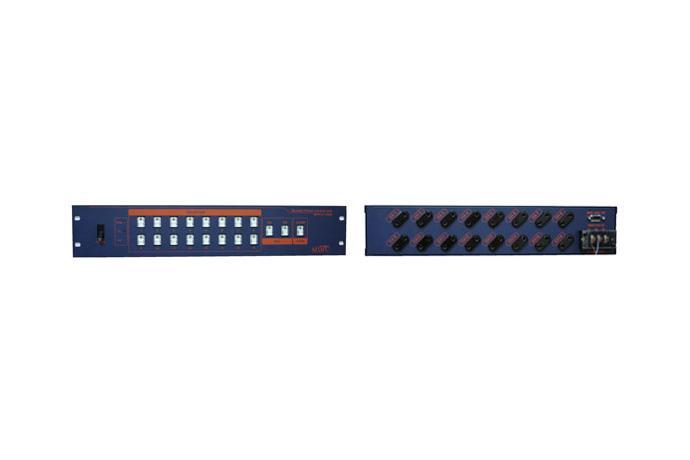

2. Panel Drawing

3. Specification

○ General Part
  - CPU : One Chip 8 Bit Micro Processor 89C52
  - Memory : 93C66
  - Communication serial asynchronous :  RS-232C 9600BPS,N,8,1
  - Output port : 16 channel
  - Output power : AC 220V 10A
  - Control method :  manual, program control
  - Control shape : one on/off, all on/off
  - Correspondent ports enable to control operating sorftware : RS - 232C

○ Case & Power Part
  - Power source : AC 85 ~ 240V 50 ~ 60Hz
  - Temperature : 0℃ ~ 40℃
  - Power consumption : Below 30Watt
  - Type : 19” Rack Type
  - Dimensions : 483(W) * 89(H) * 300(D) mm
