1. Description
○ For dimming lighting equipment, it works with switch or sensor input with timer
function.
○ Used for various exhibiting facilities, it can direct and change each program
provided.
○ With maximum 3 channels, it is controlled through RS-232C connection port.

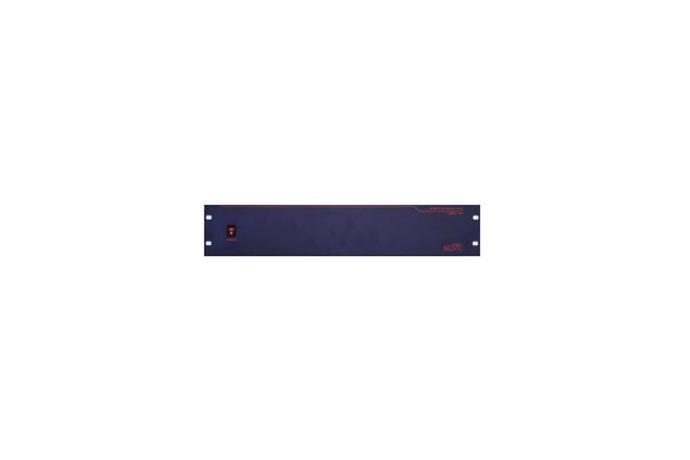

2. Panel Drawing
3. Specification
○ General Part
- Main Processor : 8bit Onechip Microprocessor
- Program Memory : 4 Kbytes
- RAM : 128 byte s
- Communication Port : 1 PORT
- X-TAL : 11.0592 MHz
- Communication : RS-232C,9600bps, DATA8bit, 1stop bit, None Parity
- Control : Contact
- Singnal Input : Contact Input or DATA(RS-232C) Select
- Ch : Max 3 Ch
- Switchering Capacity : Ch Max 2KW
- Time : 0 ~ 9 Sec
○ Case & Power Part
- Power source : AC 85 ~ 240V 50 ~ 60Hz
- Temperature : 0℃ ~ 40℃
- Power consumption : Below 20Watt
- Type : 19” Rack Type
- Dimensions : 483(W) * 89(H) * 300(D) mm
