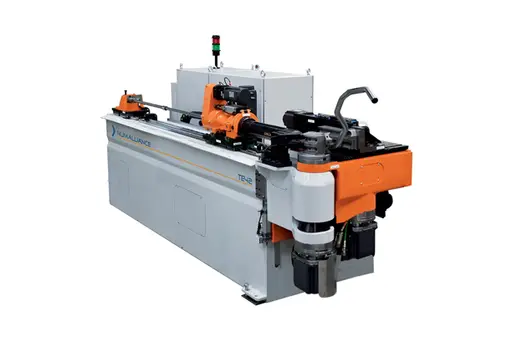

product Image
CNC Pipe Bender TE Medium
Model Name
TE25
Series
Tube Bending Machines
Data
Catalog-Numalliance-CNC Pipe Bender TE Medium
Manufacturer information
provider logo
NUMALLIANCE

Providers of Turnkey Productivity Solutions for Cold Forming Metal Wire, Tube, and Flat-stock

Problem with product info?
Update request
Manufacturer
NUMALLIANCE
Brand
-
SKU
137082
Product Name
CNC Pipe Bender TE Medium
Model Name
TE25, TE32, TE32LR, TE42, TE45, TE50, TE50LR
Size
-
Weight
-
Product Details

Range : Tube bending machines
Technical Presentation of the CNC pipe bender TE Medium

Main features
  • From 0.79″ to 2×0.08″
  • Applications : Automotive H.V.A.C., ERG Tube, structure parts, fuel, seats
  • Air et Space : hydraulic piping, circulation control wing, fuel, structure
  • Main features : all electric benders
  • Stackable multi-radii
  • Draw bending with and without mandrel and roll bending
  • Possibility to combine bending with complementary operations
Man / Machine Interface
  • Industrial-Grade PC powered by proprietary software
  • Multilingual dialog and programming interface on a 19″ touch screen
  • Simulation program
  • Additional I/O
  • Internet connection: remote assistance and chat room
  • Auto-corrective feedback from 3D-measuring devices
  • Tool editor allows programming of complex parts
  • Simulation tool to facilitate part set-up
    Program execution in slow motion
  TE25 TE32 TE32LR TE42 TE50 TE50LR
Max tube ø 0.98x0.08" at 400N/mm² 1x0.08" at 400N/mm² 1x0.08" at 400N/mm² 2x0.08" at 400N/mm² 2x0.08" at 400N/mm² 2x0.08" at 400N/mm²
Tube length 79 to 157" 79 to 157" 79 to 157" 79 to 157" 79 to 157" 79"
Max bending raidus 6" 6" 6" 6" 6" 6"
Bending tools 4
Left or right
4
Left or right
2x3
Left and right
4
Right
3 or 4 (option) 2x3
Left and right


Example of parts made with the CNC pipe bender TE Medium
