CNC Automatic Wire Bender R4xx
Model Name
R4 Series
Series
Wire and Flatstock Bending Machines
Data
-
Manufacturer information
provider logo
NUMALLIANCE

Providers of Turnkey Productivity Solutions for Cold Forming Metal Wire, Tube, and Flat-stock

Problem with product info?
Update request
Manufacturer
NUMALLIANCE
Brand
-
SKU
137038
Product Name
CNC Automatic Wire Bender R4xx
Model Name
R4 Series
Size
-
Weight
-
Product Details

Range : Sequential machines

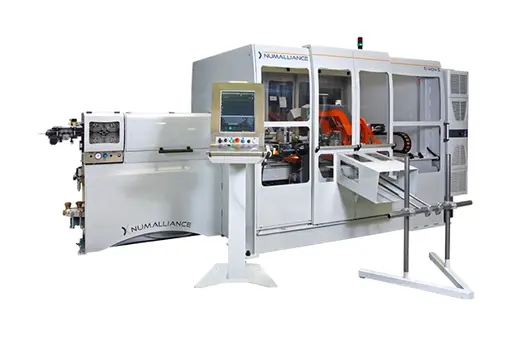

Technical Presentation of the automatic wire bender R4xx
5 CNC axis machine, with zero use of hydraulics, that set the trends for bending metal wire using CNC

Main features
  • From 1,8 to 12 mm
  • Wire
  • 3D bending starting from coil form
  • Speed and high quality manufacturing of long and symmetric parts
  • Narrow design of central clamps allows extremely short distances (from 50 mm) between 2 bends. Tool working height adjustable by programming
  • Modular design that allows evolving the machine as per your needs
  • Revolving or bi plane wire straightener as per request
  • Possible to make loops at both extremities of the parts
  • Independantly functionning bending heads. Electric thermal-stabilization unit optional
Man / Machine Interface
  • Industrial-Grade PC powered by proprietary software
  • Multilingual dialog and programming interface on a 19″ touch screen
  • Simulation program
  • Additional I/O
  • Internet connection : remote assistance and chat room
  • Simulation tool to facilitate development
  • Program sequence in slow motion

Example of parts made with the automatic wire bender R4xx
