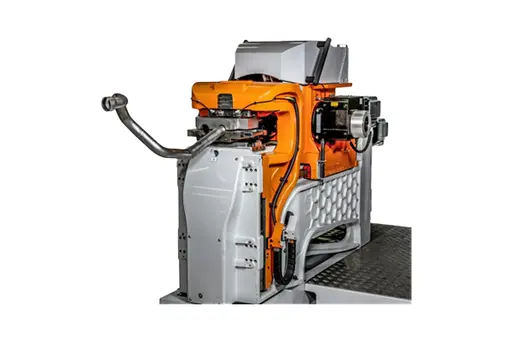

product Image
CNC Tube End Former Numaform 5-8-12E
Model Name
Numaform 5e
Series
Tube Endforming Machines
Data
Catalog-Numalliance-CNC Tube End Former Numaform 5-8-12E
Manufacturer information
provider logo
NUMALLIANCE

Providers of Turnkey Productivity Solutions for Cold Forming Metal Wire, Tube, and Flat-stock

Problem with product info?
Update request
Manufacturer
NUMALLIANCE
Brand
-
SKU
137521
Product Name
CNC Tube End Former Numaform 5-8-12E
Model Name
Numaform 5e, Numaform 8e, Numaform 12e
Size
-
Weight
-
Product Details

Range : Tube forming machines
Technical Presentation of the tube end former Numaform 5-8-12E
100% electric tube forming machine for small and medium diameters

Main features
  • Tube
  • Working force : 5 / 8 / 12
  • Full electric machine
  • Compact and easy integration into automatic cells
  • Forming before and after bending with easy access aroung the tooling
  • Work material : cooper, aluminium, steel, stainless steel, brass, titanium, inconel …
  • Large clamping tool opening
  • Userfriendly HMI
Man / Machine Interface
  • Industrial-Grade PC powered by proprietary software
  • Multilingual dialog and programming interface on a 19″ touch screen
  • Simulation program
  • Additional I/O
  • Internet connection: remote assistance and chat room
  • Auto-corrective feedback from 3D-measuring devices
  • Tool editor allows programming of complex parts
  • Simulation tool to facilitate part set-up
  • Program execution in slow motion
  Numaform 5e Numaform 8e Numaform 12e
Tube max ø Max 3" Max 3" Max 3"
Working force 5T 8T 12T
Clamping gorce 8T 12T 18T


Example of parts made with the tube end former Numaform 5-8-12E

More products
NUMALLIANCE
Providers of Turnkey Productivity Solutions for Cold Forming Metal Wire, Tube, and Flat-stock
Founded in 1986, NUMALLIANCE Group is one of the leading providers of turnkey productivity solutions for cold-forming metal wire, tube, and flat-stock. The company has developed its know-how far beyond bending. Numalliance solutions can also integrate secondary operations such as notching, cutting, punching, chamfering, welding, threading, embossing, robotization, thermal stabilization, 3D control, and auto-correction of resulting programs. All of Numalliance’s automated production machines and cells are designed and manufactured in France (6), and in North America: USA (Lebanon, Ohio) and Mexico (Querétaro). Our solutions are sold around the world, banking on its 11 subsidiaries and technical sales offices (USA, Mexico, China, India, Russia, Slovakia, Germany, Brazil, Romania) and its network of 40 agents. Therefore they meet the expectations of all types of sectors: automotive, aeronautics, agriculture, construction, sanitary, furniture, medical, shop equipment, and more! The company Numalliance accompanies its customers all around the world and offers them a reactive and attentive service. Numalliance’s innovative solutions are recognized worldwide for their quality, accuracy, productivity and flexibility. Bring a whole new dimension to your production and make your factory a showcase for Industry 4.0! At Numalliance, our Research and development team is constantly developing ever more efficient tools. Thanks to the integration of our digital solutions and equipment such as robots or AGVs, we will bring speed and precision to the production of your parts. Always to improve your productivity, while guaranteeing ease of use, Numalliance will be able to assist you in making your factory a showcase for Industry 4.0, at the cutting edge of the latest technologies.
