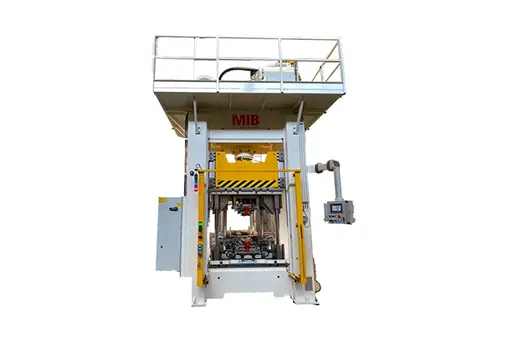

product Image
Standard Hydraulic Press
Model Name
h-P100
Data
Catalog-Numalliance-Standard Hydraulic Press
Manufacturer information
provider logo
NUMALLIANCE

Providers of Turnkey Productivity Solutions for Cold Forming Metal Wire, Tube, and Flat-stock

Problem with product info?
Update request
Manufacturer
NUMALLIANCE
Brand
-
SKU
142892
Product Name
Standard Hydraulic Press
Model Name
h-P100, h-P200
Size
-
Weight
-
Product Details

Range : Press
Presentation of the HP

Main features
  • Low noise level
  • Configurable cycle management
  • Intuitive control panel
  • Stroke and force control
  • Maintained pressure and controlled decompression
  • Complies with the machine directive and hydraulic press standards
  • Physical protection of the operator and safety valves
  • Complete nomenclatures and technical sheets
Man / Machine Interface
  • High forming flexibility
  • High life expectancy
  • Precise and controlled stroke
  • Scalable with optional function
  • Suitable for a wide range of applications
  • Greater adaptability
  • Built-in overload protection
  • Capacity for high tonnage
  h-P100 h-P200
Types of presses Arch guide cylinder Arch guide cylinder
Maximum strength 100T 200T
Mobile part Top shelf Top shelf
Dimensions of the trays 800 x 600mm 1600 x 1200mm
Characteristics of the trays T-slots T-slots
Number of main cylinders (x1) (x1)
Race 500mm 1200mm
Passage 800mm 1500mm
Approach speed 200mm/s 200mm/s
Slow working speed 15mm/s 10mm/s
Fast opening speed 150mm/s 150mm/s
PLC / Screen Siemens S7 / 12" Siemens S7 / 12"
Pressure sensor analog 0-10 V analog 0-10 V
Operator Safety Side panels + light curtains Front Side panels + light curtains Front
Stroke of the measuring rod Linear analog 0-10V Linear analog 0-10V
